CUB7TVS0 - Red Lion Controls Cub 7 Miniature Timers - 8-Digit Timer, Voltage, Reflective Display (Replaced CUB7T100)

CUB7TVS0 - Red Lion Controls
CUB7TVS0

Price: $100.71
Manufacturer SKU: CUB7TVS0



Availability: Usually Ships in 3 to 5 Days
Part Number: CUB7TVS0
Qty:

Description

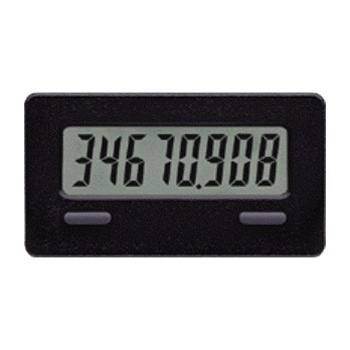

The CUB7 series is an 8-digit lithium battery powered miniature timer with large 0.35" (8.9 mm) high digits. It has an LCD read-out available in Positive Imagine Reflective, Negative Image Transmissive with yellow/green or red backlighting. The backlight versions require an external 6-26 VDC power supply. The CUB7 series is housed in a lightweight, high impact plastic case with a clear viewing window. The sealed front panel with silicon rubber keypad meets NEMA 4X/IP65 specification for wash-down and/or dusty environments, when properly installed with supplied panel gasket and mounting clip.

The timer CUB7 models are available with a low voltage input (28 VDC max) or an isolated high voltage input (50-250 VDC/VAC). The low voltage input has DIP switch selections for SINKING or SOURCING along with a HIGH/LOW FREQUENCY selection (low frequency for contact inputs). Both units have front panel keypads that can be used to reset the display. The keypad can be enabled/disabled via a single DIP switch. The standard unit uses 22 gauge wires for external connections.
