DSQUA3 - SSAC Timer Multifunction 24 240VAC 0.7A Out QC Dip Switch

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Multifunction > DSQU / DSTU Series >

DSQUA3

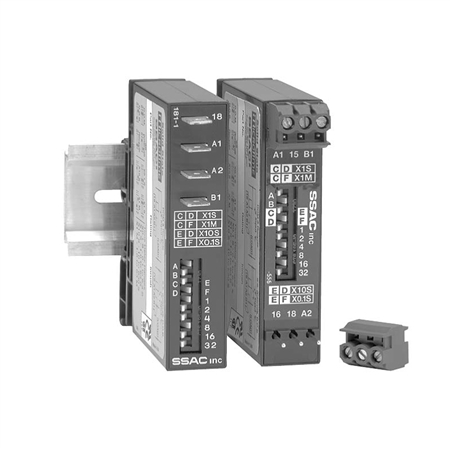

This is a family photo and may not be an accurate representation of the product.

Price: $94.48

Returnable: NOT RETURNABLE
Manufacturer SKU: DSQUA3
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: DSQUA3

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

DSQUA3 - SSAC Timer Multifunction 24 240VAC 0.7A Out QC Dip Switch

The DSQU / DSTU Series Family

The DSQU/DSTU Series of 17.5 mm, switch adjustable, universal solid-state timers offer multiple functions, voltages, and time delay ranges. Choose one of 5 functions and 4 time delay ranges via 4 selection switches located on face of the unit. Six switches adjust the time delay through the selected range.

Features:

17.5 mm package for high rail density

Microprocessor controlled with ±0.1% timing accuracy

Multimode: 5 selectable functions

Multirange: switch adjust from 0.1s - 63m

Multivoltage: 24 to 240VAC or 9 to 110VDC

0.7A steady, 10A inrush rated solid-state output

Auxiliary Products:

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

P/N: P1015-14 (AWG 18/22)

Download the The SSAC Product Line catalog in *.pdf format
Download the The DSQU / DSTU Series Datasheet datasheet in *.pdf format
