ERDI6210 - SSAC Timer Interval 230VAC Adjustable 1 100m Relay 2.5x3.5

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > ERDI Series >

ERDI6210

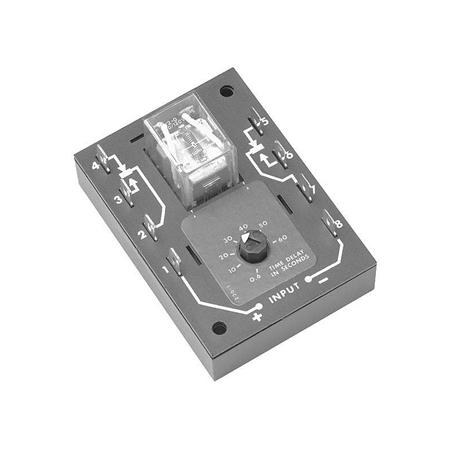

This is a family photo and may not be an accurate representation of the product.

Price: $73.17

Returnable: NOT RETURNABLE
Manufacturer SKU: ERDI6210
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: ERDI6210

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

ERDI6210 - SSAC Timer Interval 230VAC Adjustable 1 100m Relay 2.5x3.5

The ERDI Series Family

Econo-Timers are a combination of digital electronics and an electromechanical relay. DPDT relay output for relay logic circuits, and isolation of input to output voltages. For applications, such as interval on, pulse shaping, minimum run time, etc. The ERD Series is encapsulated to protect the circuitry from shock, vibration and humidity.

Operation (Interval):
Upon application of input voltage, time delay begins, and output relay energizes. At the end of time delay, output de-energizes until input voltage is removed.
Reset: Removing input voltage resets the time delay and the output.

Operation (Single Shot):
Input voltage must be applied before & during timing. Upon momentary or maintained closure of initiate switch, output relay energizes for time delay. At the end of the delay, output de-energizes. Opening or reclosing initiate switch during timing has no affect on time delay. Output will energize if initiate switch is closed when input voltage is applied.
Reset: Reset occurs when time delay is complete & initiate switch is opened. Loss of input voltage resets time delay & output.

Features:

Factory fixed, onboard or external adjust

Delays from 0.1s - 1000m in 11 ranges

±0.5% repeat accuracy

± 10% factory calibration

Encapsulated digital circuitry

Isolated 10A, DPDT output contacts

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-16

P/N: P1004-16-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

Download the The SSAC Product Line catalog in *.pdf format
Download the The ERDI Series Datasheet datasheet in *.pdf format
