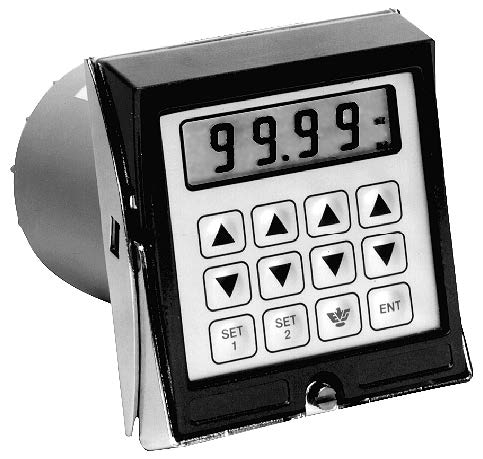

CX100A6 - Eagle Signal Electronic repeat cycle timer, LCD display; Cycl-Flex panel mtg.; 120VAC

CX100A6 - Eagle Signal Controls
CX100A6

Price: $854.00
Returnable: NOT RETURNABLE
Manufacturer SKU: CX100A6



Availability: Usually Ships in 1 to 2 Weeks
Part Number: CX100A6
Qty:

Description

This part is Non-Cancelable and Non-Returnable once the production order is placed with the factory.

CX100A6 - Eagle Signal Electronic repeat cycle timer, LCD display; Cycl-Flex panel mtg.; 120VAC

The CX100 is a solid state repeat cycle timer that will alternately turn an output on and off as long as power is applied to the unit. The CX100 is a microprocessor based timer with digital setting for greater setting accuracy than can be achieved with analog style repeat cycle timers. In addition to its greater setting accuracy, the CX100 timer is fully programmable to provide a number of time ranges and operating modes in one unit. The ON and OFF time ranges are individually programmable for fourtime ranges from 199.99 seconds to 199 hours and 59 minutes. The CX100 timer is also programmable to have the ON time first instead of the OFF time first and to reset or non-reset on power interruption. The time ranges and the operating characteristics of the unit are programmed using 7 miniature rocker switches located inside the unit housing.


Specifications:
  • Function Type Single Function Timer
  • Voltage 120 VAC
  • Frequency 50Hz, 60Hz
  • Timing Mode Symmetrical Repeat Cycle, Assymmetrical Repeat
  • Size Cycle-Flex
  • Time Format Multi-Programmable
  • Output Relay or Switch
  • Display LCD
  • Certification US-UL, CSA
  • Mounting Type Panel
  • Environmental NEMA 4
