CX202A6 - Eagle Signal Electronic reset timer/ counter, LCD display; Cycl-Flex panel mtg.; 120VAC

CX202A6 - Eagle Signal Controls
CX202A6

Price: $649.00
Returnable: NOT RETURNABLE
Manufacturer SKU: CX202A6



Availability: Usually Ships in 1 to 2 Weeks
Part Number: CX202A6
Qty:

Description

This part is Non-Cancelable and Non-Returnable once the production order is placed with the factory.

CX202A6 - Eagle Signal Electronic reset timer/ counter, LCD display; Cycl-Flex panel mtg.; 120VAC

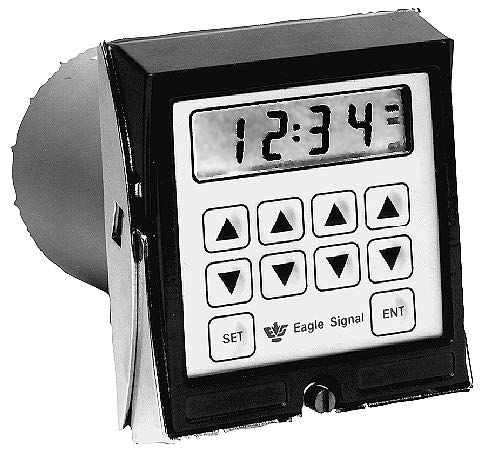

The CX200 is a microprocessor based timer/counter housed in a standard 15 terminal CYCL-FLEX plug-in case. Time or count operation, time range, and standard or reverse start operation is selected by 7 miniature rocker switches located inside the unit housing. Time or count setpoints are entered into the unit using a sealed membrane keypad on the front of the unit. Each digit in the setpoint is individually increased or decreased by pressing the appropriate keypad switch. Time or count setpoint and progress is displayed on the front of the unit by a 4 1/2 digit liquid crystal display with .5 inch digits. Time or count subtracts from the setpoint and the output changes state at zero. Operational mode annunicators also appear in the display area on the front of the unit. The mode annunciator flashes when the unit is timing or counting.


Specifications:
  • Function Type Programmable Multi-Function
  • Voltage 120 VAC
  • Frequency 50Hz, 60Hz
  • Timing Mode On-Delay/Standard Start, Off-Delay/Reverse Start, Interval/One-Shot, Assymmetrical Repeat Cycle
  • Size Cycle-Flex
  • Time Format Multi-Programmable
  • Output Relay or Switch
  • Display LCD
  • Certifications US-UL, CSA
  • Mounting Type Panel
  • Environmental NEMA 4
