CX411A6 - Eagle Signal Electronic reset timer/counter, LCD display; Cycl-Flex panel mtg.; 120VAC

CX411A6 - Eagle Signal Controls
CX411A6

Price: $971.00
Returnable: NOT RETURNABLE
Manufacturer SKU: CX411A6



Availability: Usually Ships in 1 to 2 Weeks
Part Number: CX411A6
Qty:

Description

This part is Non-Cancelable and Non-Returnable once the production order is placed with the factory.

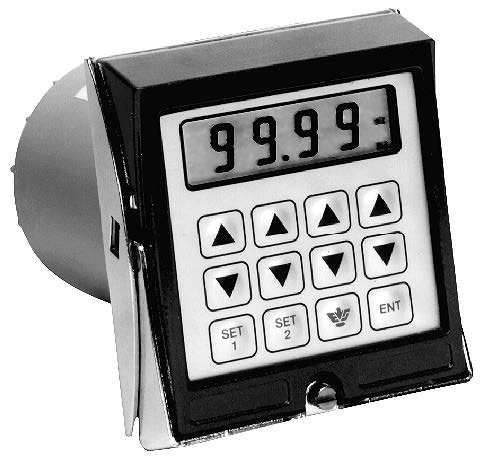

CX411A6 - Eagle Signal Electronic reset timer/counter, LCD display; Cycl-Flex panel mtg.; 120VAC

The CX400 is a microprocessor based, dual setpoint timer/counter housed in a standard 15 terminal CYCL-FLEX plug-in case which allows easy removal for programming changes and replacement. Time or count operation, time range, and the type of start input switch operation are programmed with 7 miniature rocker switches located inside the unit housing.

The front panel of the CX400 is a sealed membrane keypad which provides excellent protection for most industrial environments. The time or count setpoint is entered using the increment and decrement keys for each digit position. The SET and ENT keys provide access to the setpoint, as well as to the front panel programmable software functions. These programmable functions control the pulse output length, setpoint to zero/zero to setpoint cycle progress indication, and count input scale factor. The software programming functions are indicated with prompts to help the user program these functions without the need for written instructions.

Specifications:
  • Function Type Programmable Multi-Function
  • Voltage 120 VAC
  • Frequency 50Hz, 60Hz
  • Timing Mode On-Delay/Standard Start, Off-Delay/Reverse Start, Interval/One-Shot, Assymmetrical Repeat Cycle, Special Modes
  • Size Cycle-Flex
  • Time Format Multi-Programmable
  • Output Relay or Switch
  • Display LCD
  • Certifications US-UL, CSA
  • Mounting Type Panel
  • Environmental NEMA 4
