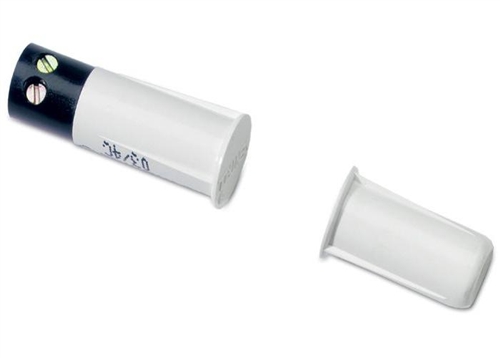

GE Security 1125T-N Recessed Stubby Magnetic Contacts with terminals. 3/8-inch Diameter.

The 1125T series stubby press-fit magnetic contact is designed specifically for applications where space is limited. The contact's short (a.k.a. "stubby") length makes it ideal for thin-framed windows and doors where longer units cannot be used.

The terminal connection adds to ease of installation. Simply strip the wire, insert it into the terminal block, and tighten. The terminal accepts any wire size from 14 to 22 gauge and has a special one-piece construction for added strength and durability.

• Voltage - 100 VAC/VDC max.
• Current - 0.5 A max.
• Power - 7.5 W max.
• Loop type - Closed
• Electrical - Normally open
• Gap distance - up to 0.25-in
• Dimensions - 1.08 (L) x 0.375 (Dia.) in. (27 x 9.5 mm)
• Housing - Flame retardant ABS plastic
• Color - White
• Warranty - Five (5) years

Download the 1125T-N specification sheet in *.pdf format
