873-S1 - Edwards Signaling HORN 250VDC PROJECTOR

873-S1 - Edwards Signaling Products
873-S1

Price: $214.77
Manufacturer SKU: 873-S1
Manufacturer ID: 78264026216



Availability: Usually Ships in 3 to 5 Days
Part Number: 873-S1
Qty:

Description Technical Specs

873-S1 - Edwards Signaling HORN 250VDC PROJECTOR

873 Series Information
  • 24~250 VDC
  • 101 dB at 10 Ft
  • Volume Adjustable
  • Completely Assembled
  • UL; FM Approvals

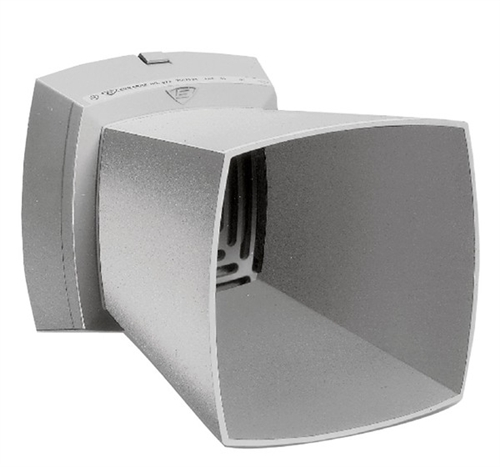

The Edwards 873 Series are low current, high decibel single projector vibrating horn for heavy duty use. The single projector is designed to channel sound in one direction without decibel loss. Supplied complete with Adaptaplate for easy installation.

Supplied Adaptaplate allows quick plug in connection. Horn simply plugs into receptacle on mounting plate. Also mounts on any single gang, 3 1/4" (83mm), 3 1/2" (89mm), 4" (102mm) octagon, or 4" (102mm) square box.

Used in industrial, commercial, and institutional applications for timing, paging, and alarm signaling.
