K-25 - Edwards Signaling Airchime_Horn_Dual_Tone

K-25 - Edwards Signaling Products
K-25

Price: $2,475.66
Manufacturer SKU: K-25
Manufacturer ID: 78264050050



Availability: Usually Ships in 3 to 5 Days
Part Number: K-25
Qty:

Description Technical Specs

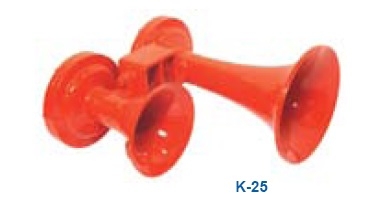

K-25 - Edwards Signaling Airchime_Horn_Dual_Tone


  • Die cast aluminum construction

  • Adjust volume via air pressure

  • Hermetically sealed diaphragm

  • Effective range - 3/4 mile (1.2 km)


The K series is designed for general signaling services. They generate sound by means of a vibrating diaphragm that modulates the flow of compressed air into a resonating projector. All horn shapes are mathematically calculated to amplify sound while closely retaining its fundamental frequency and natural harmonics.

These horns can be used for indoor/outdoor applications and are ideal for hazardous location use. Volume is adjustable by regulating air pressure.

Designed for mounting on air supply piping, supplying between 50 and 150 PSIG (3.5 and 10.5 kg/sq cm).

Typical applications include emergency signaling applications in mines, refineries and industrial facilities. Ideal for individual equipment and plant warnings.
