FB230A - SSAC Beacon Failure Alarm 230VAC for Two 500 or 700W Bulbs
FB230A - SSAC
FB230A

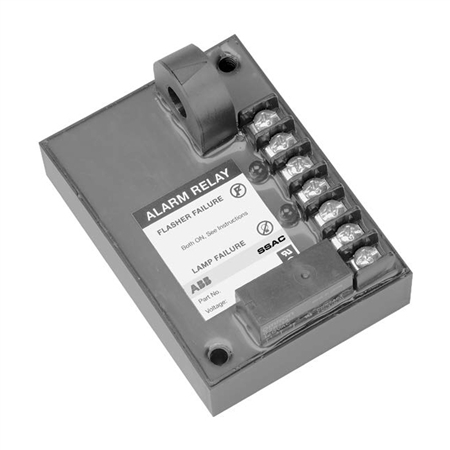

This is a family photo and may not be an accurate representation of the product.

Price: $273.41
Returnable: NOT RETURNABLE
Manufacturer SKU: FB230A
(Minimum order):  10



Availability: Usually Ships in 3 to 5 Days
Part Number: FB230A
Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

FB230A - SSAC Beacon Failure Alarm 230VAC for Two 500 or 700W Bulbs

The FB120A / FB230A Series Family

The FB120A and FB230A are used to monitor the operation of one two-lamp incandescent beacon and one beacon flasher (or auxiliary module). The flasher and lamps are monitored by sensing the flow of current in the circuit. If the lamp(s) or the flasher fail to operate properly, a solid-state output and an isolated SPDT relay energize. When connected to a site monitoring system, this unit provides the remote beacon monitoring protection required by the FAA/FCC. On a multiple beacon structure, one unit is required for each two-lamp incandescent beacon (one unit per beacon for LED beacons).

Operation
If one lamp in an incandescent beacon fails, the relay and solid-state lamp failure outputs energize after 10s. If the flasher fails in the ON or OFF condition, the relay and the solid-state flasher failure output energizes after 6s. If both failures occur, all three outputs energize after their trip delays.

Note: If both incandescent lamps fail, all three outputs will energize. The relay and solid-state flasher failure output energizes after 6s, and the solid-state lamp failure output energizes after 10s.

Features:

  • Senses failed flashing incandescent beacon lamps & beacon flashers
  • Toroidal current sensing
  • One isolated, 5A, SPDT alarm output
  • Two 1A, solid-state line voltage alarm outputs
  • Trip delays prevent nuisance alarms
