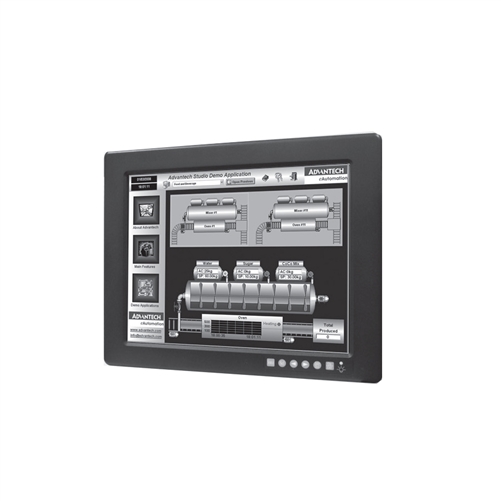

FPM-3121G-R3BE - Advantech 12.1" SVGA Industrial Monitor with Wide Temp, Resistive TS
The FPM-3121G is a particularly extremely rugged and reliable 12.1" SVGA wide temperature industrial monitor for various industry applications. Equipped with a hard anodized
coating, stainless steel chassis, and -20 to 60°C operating temperature, it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced
5-wire resistive touch and system ground isolation protection to enhance the reliability. Lockable OSD keys on front panel with 2 user-defined contrast/brightness settings.
 Download the FPM-3121G-R3AE brochure in *.pdf format
| General |
| Button Controls |
OSD control pad on front side with lockable function
Two user-defined contrast/brightness settings |
| Certification |
CE, FCC Class A, BSMI, CCC, UL, Energy Star |

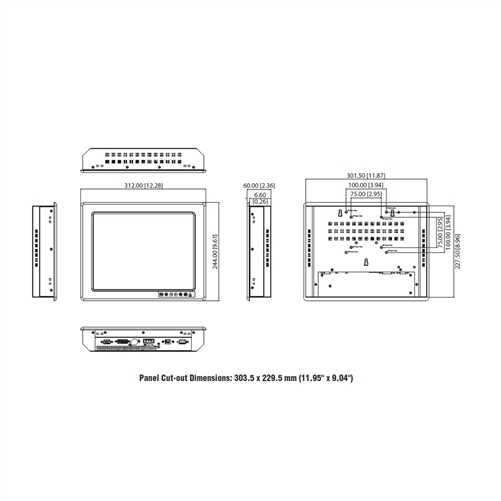

| Dimensions (W x H x D) |
312 x 224 x 60 mm (12.28" x 8.82" x 2.36") |
| Enclosure |
Front panel: Aluminum with hard anodized coating
Rear cover: Stainless steel chassis
Ground Isolation Protection |

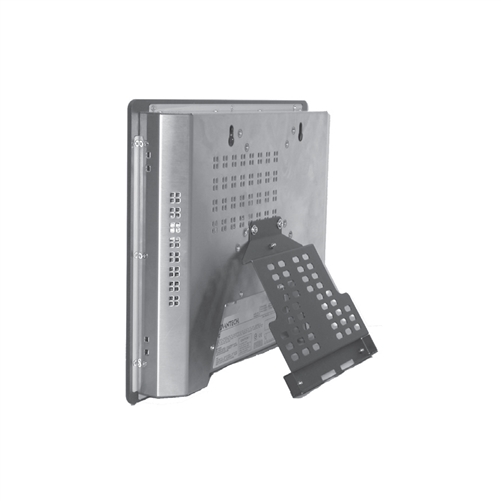

| Mounting |
Panel, VESA arm, or wall & desktop mount with
optional mounting kit |
| Power Input |
Phoenix Jack: 24 VDC input
DC Jack: 12 Vdc input |
| Power Consumption |
13W +20% |

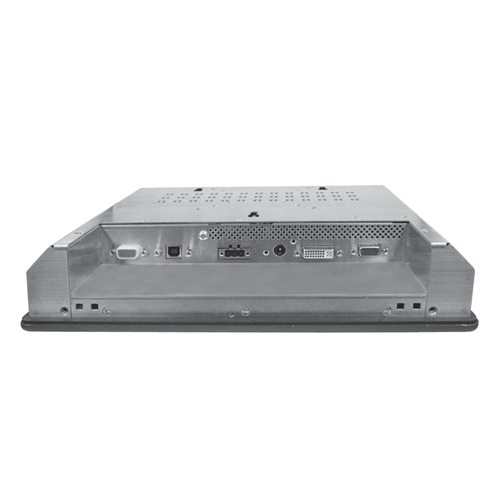

| Video Port |
VGA & DVI-D Port |
| Weight |
8.9 lbs |
| LCD Display |
| Display Type |
XGA TFT LCD with LED backlight |
| Display Size |
12.1" |
| Max Resolution |
1024 x 768 |
| Max Color |
16.2M (RGB 8-bit) |
| Viewing Angle (H/V)° |
160°(V),140°(H) |
| Luminance (cd/m²) |
600 |
| Backlight Life (hrs) |
50,000 |
| Contrast Ratio |
700:1 |
| Touchscreen |
| Driver |
Penmount 6000 |
| Type |
5-wire Resistive with enhanced ITO film |
| Interface Combo |
USB & RS-232 (Combo) |
| Light Transmission |
> 80% |
| Lifespan |
36 millions times with a silicone rubber of R8 finger,
hitting rate is calculated as being 250g at 2 times per
second |
| Touch Resolution |
Linearity |
| Power Consumption |
+5 V @ 100 mA |
| OS Support |
Windows® XP, Vista, 7, 8, 10, XPe, CE and Linux |
| Environment |
| Operation Temperature |
-20 ~ 60°C (-4 ~ 140°F) |
| Storage Temperature |
-30 ~ 80°C (-22 ~ 176°F) |
| Humidity (Storage) |
90%@50°C non-condensing |
| Waterproof |
Front Panel IP65 Compliant |
| Shock |
11ms, 10G (Non Operating, Half Sine Wave) |
| Vibration |
5 ~ 500 Hz, 1 Grms (Operating, Random) |
|
|
|
 |
|
 |
|
