300X-024 - Federal Signal SelecTone speaker/amplifier, explosion-proof, 24VAC/DC, gain control

300X-024 - Federal Signal
300X-024

Price: $2,936.01
Manufacturer SKU: 300X-024
Manufacturer ID: 78297920060



Availability: Usually Ships in 1 to 2 Weeks
Part Number: 300X-024
Qty:

Description

300X-024 - Federal Signal SelecTone speaker/amplifier, explosion-proof, 24VAC/DC, gain control

Overview:

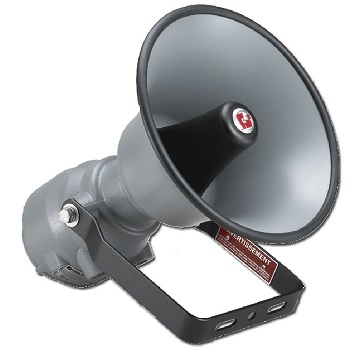

Federal Signal's Model 300X SelecTone Speaker Amplifier is designed to meet UL 1480 intelligibility requirements producing crisp, clear tones, digital voice messages and live public address in harsh environments with high ambient noise levels.

The rugged speaker cone and projector are constructed of spun aluminum. The all new internal circuitry, tone module, and gain control are contained in a housing constructed of cast aluminum. All surfaces are sealed with powder-coat paint and assembled with stainless steel hardware. Dust- and moisture-proof gaskets provide protection from the elements. This housing incorporates a tool-less rear cover design, eliminating the need for torque specific hardware and solves the problem of missing or lost fasteners.

The 300X is UL Listed for Class 1, Division 1, Groups B, C and D.

Internal gain control allows output adjustment from 0dBa to a maximum of 110dBa at 10 feet.

SelecTone Speaker Amplifiers are used individually or as part of a plant-wide emergency notification system. The Model UTM Universal Tone Module, with 32 tones, or the TM33 Custom Tone Module is plugged into a single SelecTone Speaker Amplifier for stand-alone use or into a SelecTone Command Unit for plant-wide signaling.

For plant-wide signaling, a Connector Kit is required for each SelecTone Speaker Amplifier and wired to a central controller. SelecTone Command Units and CommCenter Digital Message Centers broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Speaker Amplifiers.

Applications for SelecTone include emergency warning, plant evacuation, start and dismissal, public address, and process control.

Features:

  • Available in 24VAC/DC and 120/240VAC
  • Digital signal amplification
  • Fused input and output
  • Built–in gain control
  • Produces 0dBa to 110dBa @ 10' (0dBa to 120dBa @ 1m)
  • Type 4X, IP66 enclosure
  • UL 1480 and CSFM Approved
  • UL and cUL Listed

    pdfDownload the 300X-024 Datasheet in PDF format


    pdfDownload the 300X SelecTone Explosion–Proof Audible Signaling Device Instruction Sheet in PDF format
