AM300X - Federal Signal Speaker, 15 watts, explosion-proof, transformer coupled

AM300X - Federal Signal
AM300X

Price: $1,556.01
Manufacturer SKU: AM300X
Manufacturer ID: 78297960068



Availability: Usually Ships in 1 to 2 Weeks
Part Number: AM300X
Qty:

Description

AM300GCX - Federal Signal Speaker, 15 watts, hazardous location, transformer coupled

Overview:

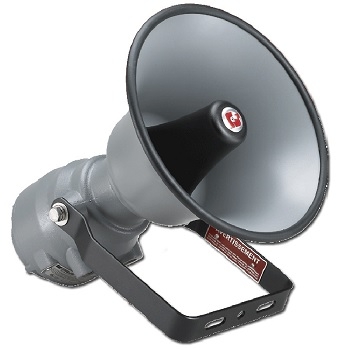

The Federal Signal Model AM300X and the AM302X are transformer coupled, re-entrant speakers for use in public address or paging applications. These speakers feature rugged cones and projectors constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are sealed with a gray powder coat paint.

Power handling for the AM300X is 15 watts and the AM302X is rated for 30 watts. There are transformer taps at 15, 7.2 and 1 watts for the AM300X and 30, 15 and 8 watts for the AM302X. Both speakers are designed for use in 25 or 70Vrms distributed systems. These speakers are UL and cUL Listed for Class 1, Division 1, Groups B, C, and D environments.

A heavy-duty U-bracket provides simple wall mounting. The unique shape of the speaker projectors provides a 60 degree sound dispersion. The entire speaker and can be swiveled 180 degrees in order to direct sound effectively.

The AM300X and the AM302X can be used with the AudioMaster amplifiers and the AudioRouter to complete an industrial grade public address system.

Features:

  • Transformer coupled
  • 15 watt
  • 25 or 70Vrms
  • Re-entrant horn design
  • Swivel mount
  • IP65, NEMA 4X Approved
  • UL Fire Listed and CSFM Approved
  • UL 1480 Approved, cUL Listed

    pdfDownload the AM300X Datasheet in PDF format


    pdfDownload the AM300X AudioMaster Public Address Explosion-Proof 15 Watt Speaker Instruction Sheet in PDF format
