AM302 - Federal Signal Speaker, 30 watts, transformer coupled

AM302 - Federal Signal
AM302

Price: $546.32
Manufacturer SKU: AM302
Manufacturer ID: 78297960069



Availability: Usually Ships in 1 to 2 Weeks
Part Number: AM302
Qty:

Description

AM302 - Federal Signal Speaker, 30 watts, transformer coupled

Overview:

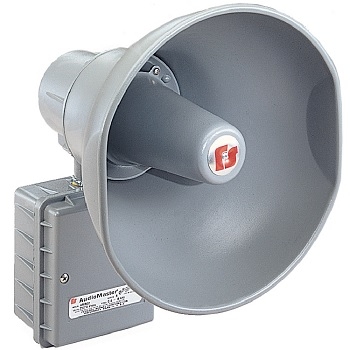

The AM302 is a rugged, transformer coupled, re-entrant speaker for use in a public address or paging application. This 30 watt speaker features a durable speaker cone and projector constructed of spun aluminum. The speaker wiring connections are enclosed in a dust- and moisture-proof, die-cast aluminum compartment. All external surfaces are sealed with a gray powder coat paint.

Two screws inserted through the back of the wiring compartment provide for a simple wall mount. The bottom of the AM302 contains two 1/2-inch conduit openings to accommodate inbound and outbound audio wiring. The unique shape of the AM302 projector provides a 60 degree sound dispersion. The projector is held in position with a Teflon coated lock ring that can be rotated 180 degrees in order to obtain the desired sound distribution.

Power handling for the AM302 is 30 watts with transformer taps of 30, 15 and 7-watts. This unit is designed for use in 25 and 70Vrms distributed systems.

The AM302 is rated for indoor and outdoor use. The AM302 can be used with the AudioMaster CTS series amplifiers and the AudioRouter to complete an industrial grade public address system.

Features:

  • Transformer coupled
  • 25 or 70Vrms
  • 30 watt
  • Re-entrant horn design
  • Wall mount
  • Type 3R enclosure
  • UL 1480 Approved

    pdfDownload the AM302 Datasheet in PDF format


    pdfDownload the AM302 AudioMaster Public Address 30 Watt Speaker Instruction Sheet in PDF format
