FB24ST-024A - Federal Signal Strobe, 24VDC, 4-wire, amber, in-rush limited

FB24ST-024A - Federal Signal
FB24ST-024A

Price: $603.75
Manufacturer SKU: FB24ST-024A
Manufacturer ID: 78297921639



Availability: Usually Ships in 1 to 2 Weeks
Part Number: FB24ST-024A
Qty:

Description

FB24ST-024A - Federal Signal Strobe, 24VDC, 4-wire, amber, in-rush limited

Overview:

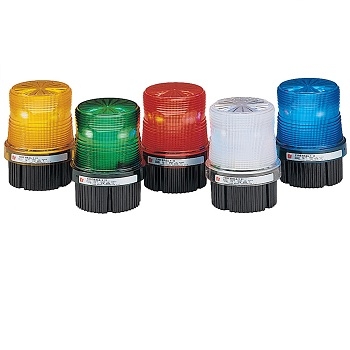

Federal Signal's brightest and most compact strobe light, the Fireball® Supervised Warning Light emits a powerful "lightning bolt" flash of light. Approximately five inches tall and four inches in diameter and rated at 300 effective candela, the FB24ST is an economical solution to a wide variety of stationary requirements. The Fireball is available in 24VDC. All models are UL and cUL Listed, CSA Certified and CSFM Approved.

The 24VDC FB24ST features a voltage in–rush limiting PCB design that provides greater compatability with control systems and less electrical interference with in–rush sensitive devices.

The FB24ST features a unique dome that twists off easily for quick dome and lamp replacements. The newly redesigned base features an integrated 1/2–inch pipe mount boss as well as the three holes required for surface mount configurations. Black epoxy paint is electrostatically applied to the base for superior corrosion resistance. The Fireball dome and base design provides a watertight, dust–tight and corrosion resistant Type 4X rating.

The FB24ST contains a supervisory diode and four wire leads, for use in fire alarm applications.

The FB24ST can be used in any application where a superior visual signal is needed. It is especially effective in the warning of industrial hazards, process control, status indication and in areas with high ambient noise levels.

Federal Signal's Fireball Supervised Strobe is a very low–maintenance warning light for industrial applications where a vibration–resistant light is required to signal an emergency or process status

Features:

  • Available in 24VDC
  • Four wires and supervisory diode
  • Six dome colors
  • 10,000 hour strobe tube
  • Integrated 1/2" pipe and surface mount
  • Type 4X, IP66 enclosure
  • CSFM Approved
  • CSA Certified
  • UL and cUL Listed

    pdfDownload the FB24ST-024A Datasheet in PDF format


    pdfDownload the FB24ST Fireball Supervised Strobe Warning Light Instruction Sheet in PDF format
