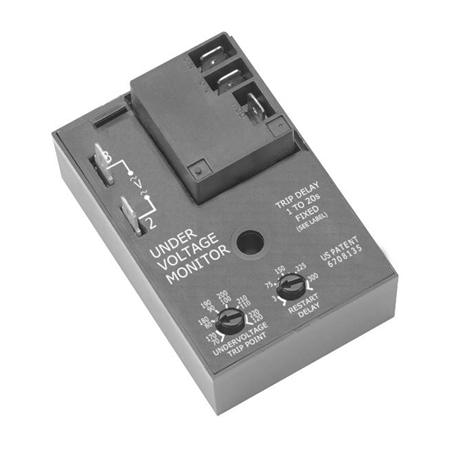

HLVA6I23 - SSAC 1 Phase Volt Mon 220VAC Iso SPDT 3s Trip Adjustable 3 300s Restart
The HLV Series Family
The HLV Series is a single-phase undervoltage monitor designed to protect sensitive equipment from brownout or undervoltage conditions. Time delays are included to prevent nuisance tripping and short cycling. The 30A, 1hp rated, SPDT relay contacts allow direct control of motors, solenoids and valves. The output relay can be ordered with isolated SPDT contact to allow monitoring of one voltage and switching a separate voltage. Two undervoltage trip point ranges allow monitoring of 110 to 120VAC or 208 to 240VAC systems.
Operation
Upon application of input voltage the output relay remains de-energized. When the input voltage value is above the pull-in voltage, the restart delay begins. At the end of the restart delay, the output relay energizes. When the input voltage falls below the trip point, the trip delay begins. If the input voltage remains below the pull-in voltage for the entire trip delay the relay de-energizes. If the input voltage returns to a value above the pull-in voltage, during the trip delay, the trip delay is reset and the relay remains energized. If the input voltage falls below the trip point voltage during the restart delay, the delay is reset and the relay remains de-energized. Reset is automatic upon correction of an undervoltage fault.
Reset: Removing input voltage resets the output relay and the time delays.
Features:
- Protects against undervoltage in single phase systems
- 30A, SPDT, NO output contacts
- 100 to 240VAC input voltage
- 70 to 220VAC adjustable undervoltage trip point in 2 ranges
- Restart delays from 3 - 300s
- Trip delay 1 - 20s fixed
- Isolated or non-isolated relay contacts
Auxiliary Products:
- Quick connect to screw adaptor: P/N: P1015-18
- Female quick connect:
- P/N: P1015-13 (AWG 10/12)
- P/N: P1015-64 (AWG 14/16)
- Mounting bracket: P/N: P1023-6
- DIN rail: P/N: C103PM (Al)
- DIN rail adaptor: P/N: P1023-20
