HRDI421 - SSAC Timer Interval 120VAC Relay Adjustable 1 100s 2x3

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > HRDI Series >

HRDI421

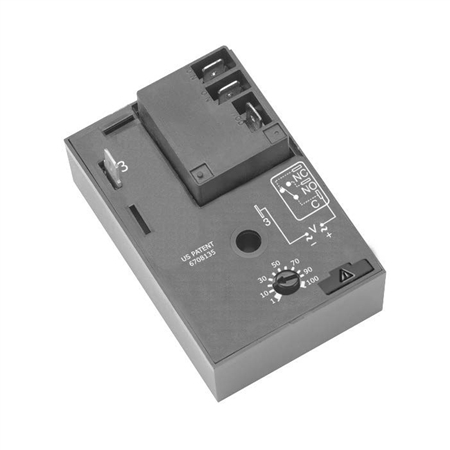

This is a family photo and may not be an accurate representation of the product.

Price: $75.41

Manufacturer SKU: HRDI421
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: HRDI421

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

HRDI421 - SSAC Timer Interval 120VAC Relay Adjustable 1 100s 2x3

The HRDI Series Family

The HRDI Series combines an electromechanical relay output with microcontroller timing circuitry. It offers 12 to 230V operation in five ranges and factory fixed, external, or onboard adjustable time delays with a repeat accuracy of ±0.5%. The output contact rating allows for direct operation of heavy loads, such as compressors, pumps, blower motors, heaters, etc. This series is ideal for OEM applications where cost is a factor.

Operation (Interval):
Upon application of input voltage, the time delay begins. The output relay is energized during the time delay. At the end of the time delay, the output de-energizes and remains de-energized until input voltage is removed. Reset: Removing input voltage resets the time delay and the output.

Features:

30A, SPDT, NO output contacts

12 to 230V operation in 5 options

Encapsulated circuitry

Delays from 0.1s - 100m in 5 ranges

±0.5% repeat timing accuracy

Factory fixed, onboard or external adjust

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

Mounting bracket: P/N: P1023-6

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
