HRDM120 - SSAC Timer Delay-on-Make 12VDC Relay Adjustable 0.1 10s 2x3

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > HRDM Series >

HRDM120

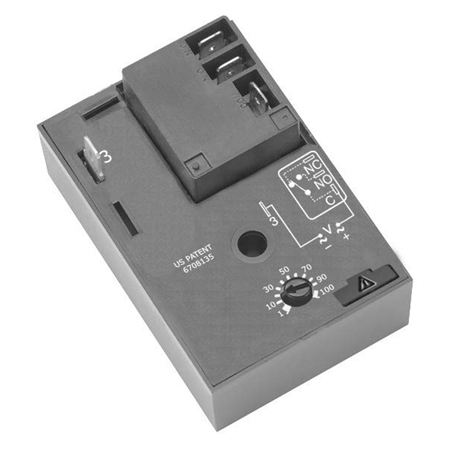

This is a family photo and may not be an accurate representation of the product.

Price: $75.41

Manufacturer SKU: HRDM120
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: HRDM120

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

HRDM120 - SSAC Timer Delay-on-Make 12VDC Relay Adjustable 0.1 10s 2x3

The HRDM Series Family

The HRDM Series combines an electromechanical relay output with microcontroller timing circuitry. It offers 12 to 230V operation in five ranges and factory fixed, onboard, or external adjustable time delays with a repeat accuracy of ±0.5%. The output contact rating allows for direct operation of heavy loads, such as compressors, pumps, blower motors, heaters, etc. This series is ideal for OEM applications where cost is a factor.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output relay energizes and remains energized until input voltage is removed.
Reset: Removing input voltage resets the time delay and output.

Features:

30A, SPDT, NO output contact

12 to 230V operation in 5 ranges

Encapsulated circuitry

Delays from 0.1s - 100m in 5 ranges

±0.5% repeat accuracy

Factory fixed, onboard or external adjust

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Mounting bracket: P/N: P1023-6

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
