HRISW27I - SSAC Timer Interval 24 240VAC/24 110VDC Relay Adjustable 0.1 10H 2x3

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > ProgramaCube > HRPS / HRIS Series >

HRISW27I

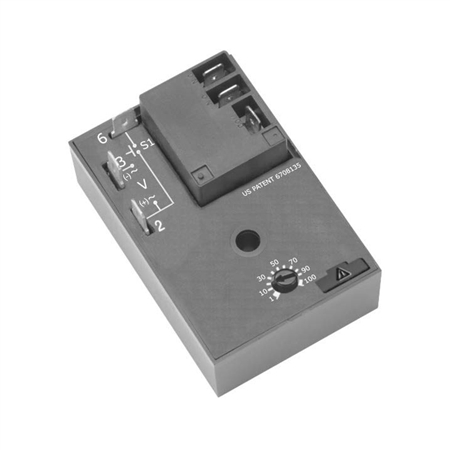

This is a family photo and may not be an accurate representation of the product.

Price: $83.45

Returnable: NOT RETURNABLE
Manufacturer SKU: HRISW27I
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: HRISW27I

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

HRISW27I - SSAC Timer Interval 24 240VAC/24 110VDC Relay Adjustable 0.1 10H 2x3

The HRPS / HRIS Series Family

The HRPS/HRIS Series combines an electromechanical relay output with microcontroller timing circuitry. It is a factory programmed module available in any 1 of 13 standard functions. It offers 12 to 240V operation in two universal ranges and factory fixed, onboard, or external adjustable time delays with a repeat accuracy of ±0.5%. The output contact rating allows for direct operation of heavy loads, such as compressors, pumps, blower motors, heaters, etc. This series is ideal for OEM applications where cost is a factor. The HRPS has non-isolated SPDT relay contacts, and the HRIS has isolated SPDT relay contacts. Both offer the most popular timer functions in the industry.

Features:

30A, SPDT, NO output contacts

Factory programmed

12 to 240V operation in 2 ranges

Special time ranges & functions available

Delays from 0.1s - 1000h in 9 ranges

±0.5% repeat accuracy

±2% factory calibration

Fixed, external, or onboard adjustment

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Mounting bracket: P/N: P1023-6

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
