HH23-101 - Applied Motion Products NEMA 23 Step Motor with Hollow Shaft 2.24 Length, 212.4 TQ, 2.2 Series Current

HH23-101 - Applied Motion Products
HH23-101

Alternative Views:
Price: $101.65
Manufacturer SKU: HH23-101



Availability: Usually Ships in 3 to 5 Business Days
Part Number: HH23-101
Qty:

Description Technical Specs

HH23-101 - Applied Motion Products NEMA 23 Step Motor with Hollow Shaft 2.24 Length, 212.4 TQ, 2.2 Series Current

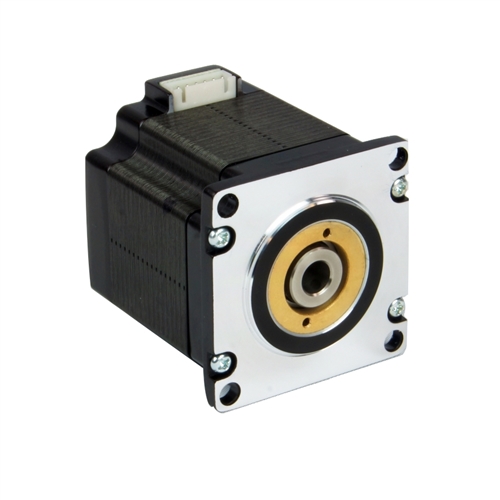

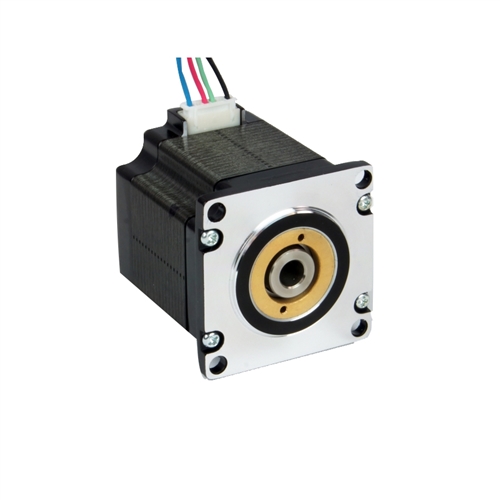

The HH23-101 two-phase stepper motor features a hollow shaft with an 8 mm bore. The hollow shaft allows for the attachment of lead screws and customized shafts without disassembling the motor.

This step motor is suitable for a wide range of motion control applications and is recommended for use with Applied Motion ST5 stepper drives.

Features
  • Hollow shaft for mounting custom shafts or lead screws
  • High torque design
  • 1.8 degree step angle (200 steps/rev)
  • 2-phase step motors
  • NEMA 23 frame size
  • All motors shipped with detachable lead/connector pigtail
pdfDownload the HH23-101 Datasheet in *PDF format
pdfDownload the HH23-101 2D Drawing in *PDF format
pdfDownload the HH23-101 2D Drawing in *PDF format
pdfDownload the HH23-101 Speed-Torque Curves Datasheet in *PDF format
