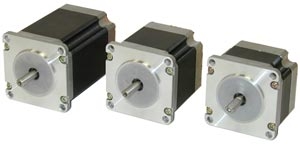

HT23-550D - Applied Motion Products NEMA 23 High Torque Step Motor w/Double Shaft

HT23-550D - Applied Motion Products
HT23-550D

Price: $190.00
Manufacturer SKU: HT23-550D



Availability: Usually Ships in 3 to 5 Days
Part Number: HT23-550D
Qty:

Description

The HT23-550D two-phase stepper motor w/Double Shaft is designed for use with the STAC6 series of stepper drives (120 VAC input versions only) and is suitable for a wide range of motion control applications. The motor comes with an integral 10 ft shielded cable and a preassembled drive connector for easy connection to a STAC6 drive.

When not used with STAC6 drives, the preassembled drive connector can be removed to reveal 8 motor leads plus 1 ground lead. The 8 motor leads can be connected in one of three ways to the step motor drive of your choice: bipolar series (required for STAC6 drives), bipolar parallel, or unipolar.

Note: The HT23-550 step motor has been superseded by the HT23-554 step motor for use in all new applications with STAC6 stepper drives.

  • 2-phase hybrid step motor
  • High torque design
  • Standard NEMA 23 dimensions
  • Optimized for high bus voltage
