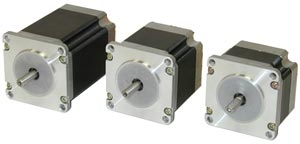

HT23-554D - Applied Motion Products NEMA 23 High Torque Step Motor w/Double Shaft

HT23-554D - Applied Motion Products
HT23-554D

Price: $163.40
Manufacturer SKU: HT23-554D



Availability: Usually Ships in 3 to 5 Days
Part Number: HT23-554D
Qty:

Description

The HT23-554D two-phase double shaft stepper motor is designed for use with the STAC5 and STAC6 series of stepper drives and is suitable for a wide range of motion control applications. The motor is optimized for use with high bus-voltage drives and comes with an integral 10 ft shielded cable.

The motor is terminated with 8 motor leads plus 1 ground lead making it easy to connect the motor to the drive depending on the drive voltage being used. For 120 VAC applications the motor leads must be connected in parallel. For 220 VAC applications the motor leads must be connected in series.

Note: The HT23-554 step motor supersedes the HT23-550 step motor in 120 VAC applications with the STAC6 stepper drives.

  • 2-phase hybrid step motor
  • High torque design
  • Standard NEMA 23 dimensions
  • Optimized for high bus voltage
