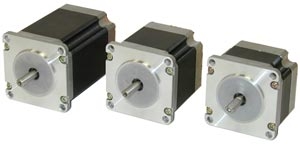

The HT23-554 two-phase stepper motor is designed for use with the STAC5 and STAC6 series of stepper drives and is suitable for a wide range of motion control applications. The motor is optimized for use with high bus-voltage drives and comes with an integral 10 ft shielded cable.

The motor is terminated with 8 motor leads plus 1 ground lead making it easy to connect the motor to the drive depending on the drive voltage being used. For 120 VAC applications the motor leads must be connected in parallel. For 220 VAC applications the motor leads must be connected in series.

• 2-phase hybrid step motor
• High torque design
• Standard NEMA 23 dimensions
• Optimized for high bus voltage
