HW34-696D-YAC - Applied Motion Products IP65 Rated Washdown, NEMA 34 High Torque Step Motor, Double Shaft Version with Encoder

HW34-696D-YAC - Applied Motion Products
HW34-696D-YAC

Price: $874.00
Manufacturer SKU: HW34-696D-YAC



Availability: Usually Ships in 3 to 5 Days
Part Number: HW34-696D-YAC
Qty:

Description

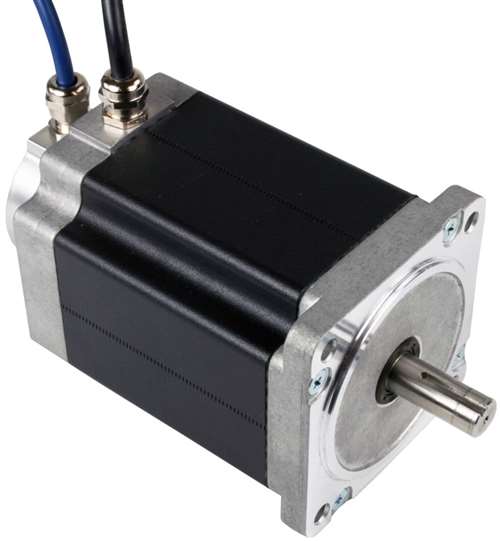

The HW34-696D-YAC two-phase stepper motor is suitable for a wide range of motion control applications including wet factory environments and outdoor use. The IP65 rating means the motor is dust proof and resistant to lower pressure water jets. Key features of this rating include an integral 10 ft shielded cable, a nickel plated brass cable gland, sealed laminations and a front shaft contact seal. This motor also has an internal corrosion-resistant film coating, further protecting it in wet and humid environments.

A single-shaft version without encoder is available, part number HW34-696.

IP65 specifies a product that is dust tight (no ingress of dust; complete protection against contact) and protected against water jets (water projected by a nozzle from any direction shall have no harmful effects). To see our motor design operating in a rain simulation chamber check out this video.

  • 2-phase hybrid step motor
  • Rated IP65 for wet and dusty environments
  • High torque design
  • Standard NEMA 34 dimensions
  • Integral 10 ft shielded cable w/ cable gland
  • Sealed laminations
  • Front shaft seal
  • Single shaft version without encoder available
