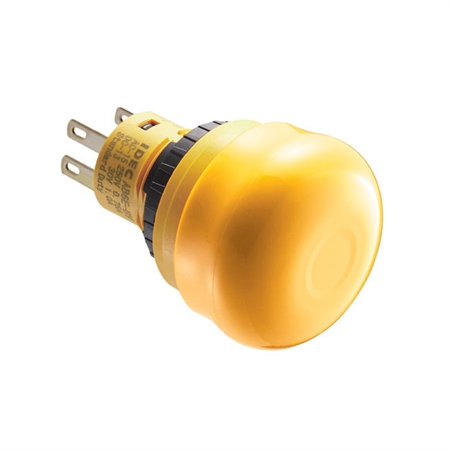

AB6E-3BV02PTY - IDEC 16mm X6 Emergency Stop Yellow 30mm 2NC without Markings
Unibody E-Stop Non Illuminated 16mm X6 Series 2NC Yellow 30mm Mushroom Head Solder/tab #110 IP65
The X6 Series Family
Utilizing our unique Reverse Energy Structure, new X6 emergency stop switches are the latest in safety innovation wrapped in a sleek, miniature package.
This smooth design is ideal for applications requiring cleanliness, such as food processing machines, medical equipment and semiconductor equipment. Manufactured to prevent dust build up and make cleaning simple, this sleek switch is both hygienic and visually appealing.
The unibody design is efficient and elegant, extending only 23.9mm behind the panel compared with conventional e-stops which average 27.9mm! By reducing the depth and volume, these e-stops keep equipment and control panels compact yet safe.
X6 Emergency Stop switches also include IDEC's innovative "safe break action" design, which uses a unique reverse energy structure to ensure that the NC contacts will open if the emergency switch is damaged; the NC contacts will reliably open, even if they are welded, and stop the machine.
The X6 emergency stop switch can be reset either by pulling or turning, and the button is offered in 30mm and 40mm sizes. In addition to a red emergency button, a yellow button is also available as a stop switch, and all buttons are available with or without arrow markings.
X6 emergency stop switches are UL, c-UL recognized, and EN compliant.
Key Features
- Smooth button resists dirt buildup, and provides attractive appearance
- Only 23.9mm depth behind the panel
- IDEC's innovative "safe break action" ensures all NC contacts open if the contact block is separated from the operator
- Pushlock turn reset and push-pull functions built into same unit
- Two button sizes - 30mm and 40mm
- Direct opening action mechanism (IEC60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Degree of protection IP65 (IEC60529)
- Solder-tab terminals
- UL recognized, c-UL approved, EN compliant
 Download the Switching & Controls Family Catalog in *.pdf format
Download the Quick Selection Guide in *.pdf format
Download the X6 Series datasheet in *.pdf format
| Product Type |
Emergency Stop |
| Operation Type |
Push Lock - Turn Reset|Push-Pull |
| Mounting Hole Size |
Φ16mm |
| Color |
Yellow |
| Normally Closed Contacts |
2 |
| Normally Open Contacts |
0 |
|
|
|
 |
|
 |
|
