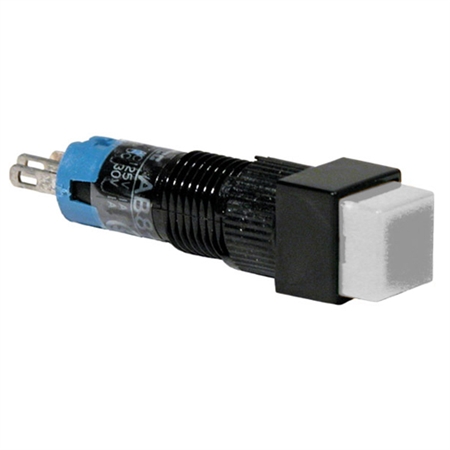

AB8Q-A1-W - IDEC Square Pushbutton SPDT IP40

AB8Q-A1-W - IDEC
AB8Q-A1-W

Price: $7.31
Manufacturer SKU: AB8Q-A1-W



Availability: Usually Ships in 3 to 5 Business Days
Part Number: AB8Q-A1-W
Qty:

Description Technical Specs

AB8Q-A1-W - IDEC Square Pushbutton SPDT IP40
Pushbutton Φ8mm Maintained Plastic Square White 1NO-1NC Contact Solder Tab / Quick Connect

The A8 Series Family
The A8 series of switches and pilot devices offer the extreme in space savings. With only an 8mm panel cutout, they are ideal for high density or very small control panels such as handheld devices. Low level snap acting contacts are ideal for PLC inputs, timer triggers, sensor triggers, or any other type of logic level switching. LED lamps are replaceable unlike most other switches and pilot lights of similar size. With a choice of round square or rectangular button heads, 5 colors, and either momentary or maintained (push-on/push-off) action there is sure to be a model to meet your needs.

Key Features
  • 8mm round mounting hole
  • Choice of round, square or rectangular bezels
  • Gold-clad silver snap action contacts for reliable low-level switching
  • LED illumination
  • IP40 degree of protection (dustproof)
  • UL recognized, CSA certified
pdfDownload the Switching & Controls Family Catalog in *.pdf format
pdfDownload the Quick Selection Guide in *.pdf format
pdfDownload the A8 Series catalog in *.pdf format
