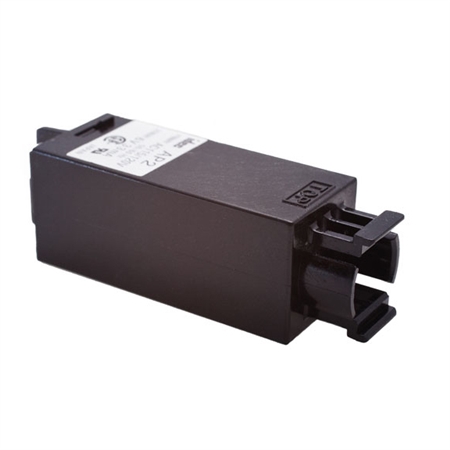

AP2-0126D - IDEC AC120V/DC6V AC ADPT

AP2-0126D - IDEC
AP2-0126D

Price: $21.80
Manufacturer SKU: AP2-0126D



Availability: Usually Ships in 3 to 5 Business Days
Part Number: AP2-0126D
Qty:

Description Technical Specs

AP2-0126D - IDEC AC120V/DC6V AC ADPT
Transformer

The AP Series Family
The AP series of pilot lights offer a simple, low cost solution to panel mounted indicating light needs. Available in four panel cutout diameters, with either dome or flat lenses, all units use an integral LED array with built in current limiting resistor. All models mount with a locking ring that fastens from behind the panel, rendering them tamperproof from outside the panel. Termination is via solder terminals of various sizes, depending on the panel cutout. Available in 5V DC, 12V AC/DC or 24V AC/DC; there are also optional snap-on transformers and a DC-DC converter to support higher voltages.

Key Features
  • 8mm, 10mm, 12mm, and 16mm round panel cutouts
  • Super bright LEDs
  • Built-in current-limiting resistor and reverse polarity protection diode
  • Dome or flat lenses
  • NEMA 4x degree of protection (watertight/oiltight)
  • UL Recognized, CSA Certified
pdfDownload the Switching & Controls Family Catalog in *.pdf format
pdfDownload the Quick Selection Guide in *.pdf format
pdfDownload the AP Series catalog in *.pdf format
