AP6M211-Y - IDEC 16mm DC12V Domed Pilot Light

AP6M211-Y - IDEC
AP6M211-Y

Price: $7.27
Manufacturer SKU: AP6M211-Y



Availability: Usually Ships in 3 to 5 Business Days
Part Number: AP6M211-Y
Qty:

Description Technical Specs

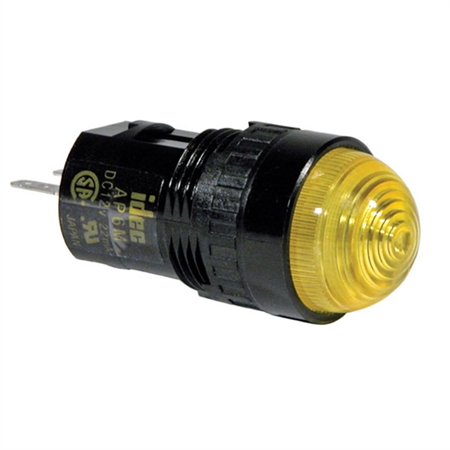

AP6M211-Y - IDEC 16mm DC12V Domed Pilot Light
Pilot Light Φ16mm Yellow Dome Full Voltage 12VDC LED Solder Tab / Quick Connect Terminal

The AP6 Series Family
The AP series of pilot lights offer a simple, low cost solution to panel mounted indicating light needs. Available in four panel cutout diameters, with either dome or flat lenses, all units use an integral LED array with built in current limiting resistor. All models mount with a locking ring that fastens from behind the panel, rendering them tamperproof from outside the panel. Termination is via solder terminals of various sizes, depending on the panel cutout. Available in 5V DC, 12V AC/DC or 24V AC/DC; there are also optional snap-on transformers and a DC-DC converter to support higher voltages.

Key Features
  • 16mm round mounting hole
  • Miniature pilot lights
  • Super bright LEDs
  • Built-in current-limiting resistor and reverse polarity protection diode
  • Dome or flat lenses
