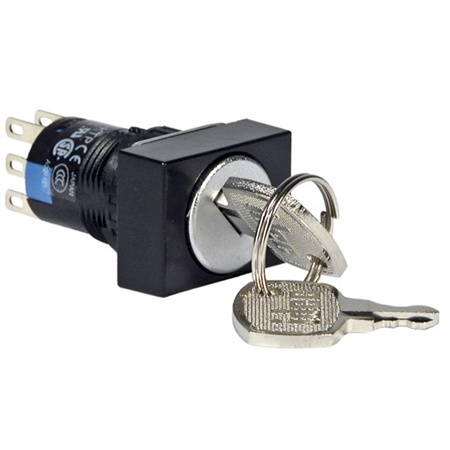

AS6M-33KT2PD - IDEC Round Key Switch 3 Position Spr-Both DPDT IP65

AS6M-33KT2PD - IDEC
AS6M-33KT2PD

Price: $26.93
Manufacturer SKU: AS6M-33KT2PD



Availability: Usually Ships in 3 to 5 Business Days
Part Number: AS6M-33KT2PD
Qty:

Description Technical Specs

AS6M-33KT2PD - IDEC Round Key Switch 3 Position Spr-Both DPDT IP65
Key Switch Φ16mm 3 Positions 2NO-2NC Contact Spring return left & right to center Key retained left & right Solder Tab / Quick Connect Terminal

The A6 Series Family
The A6 series of pushbuttons and pilot devices offer a very competitive price and simple construction in a space saving package.

Features include snap action, double throw contacts, with gold plating for reliable low level switching. Ideal for such applications as PLC inputs, logic level switching, or anywhere space is at a premium.

Offered in three styles (round, square, or rectangular), all units are terminated via .110" quick connect / solder tabs. LED illumination includes a built-in current limiting resistor, and gasketed lenses provide an IP65 watertight / oiltight panel seal. Models include illuminated and non-illuminated pushbuttons, pilot lights, selectors, key switches, and a push-lock/turn-reset switch.

Key Features
  • Super bright LED Illumination
  • Momentary, Maintained, Selector, Key, Pilot Light and Push-Lock/Turn-Reset Functions
  • Gold-clad silver snap acting contacts for reliable low level switching
  • IP40 (dustproof) or IP65 (oiltight) versions
  • .110" solder/quick connect termination
  • UL Recognized, CSA Certified
