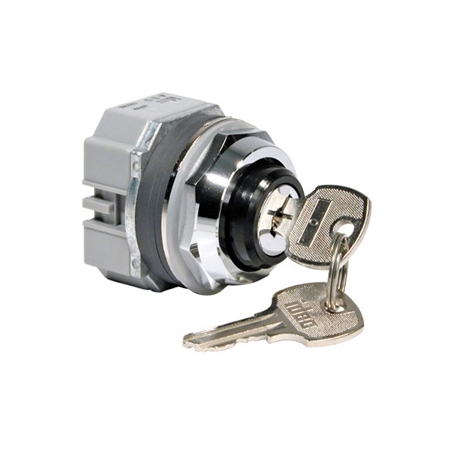

ASD31K20NU - IDEC TWTD Series Key Switch Key Retained in Right Position only 30mm 2NO 3 POS Spring Return from Right

ASD31K20NU - IDEC
ASD31K20NU

Price: $58.51
Manufacturer SKU: ASD31K20NU



Availability: Usually Ships in 3 to 5 Business Days
Part Number: ASD31K20NU
Qty:

Description Technical Specs

ASD31K20NU - IDEC TWTD Series Key Switch Key Retained in Right Position only 30mm 2NO 3 POS Spring Return from Right

The TWTD Series Family
The rugged "full size" TWTD series pushbuttons offer both variety and durability in an attractive design. With NEMA style mounting, which features a chrome plated locking ring that screws onto a die cast zinc body, stripped threads are now a thing of the past. Contacts screw on and feature clear inspection windows for monitoring contact surface condition.

All units include over 1/4" of rubber gaskets and an unbreakable steel anti-rotation ring for use in notched panel cutouts.

Models include illuminated and non-illuminated pushbuttons, pilot lights, selectors, key switches, and Emergency Stop switches. Button sizes are available up to 2-9/16" (65mm) in diameter.

Key Features
  • Rugged design includes chrome plated steel locking ring and die-cast zinc threaded body
  • Super bright LED or incandescent illumination
  • Modular construction for maximum flexibility (up to 6 contacts per switch)
  • NEMA 4X and IP65 watertight/oiltight panel seal
  • Available assembled or as sub-components
  • UL Listed, CSA Certified, Demko Approved, and CE Marked
