BN400BW3 - IDEC Terminal Block 3 Pole

BN400BW3 - IDEC
BN400BW3

Price: $52.09
Manufacturer SKU: BN400BW3



Availability: Usually Ships in 3 to 5 Business Days
Part Number: BN400BW3
Qty:

Description Technical Specs

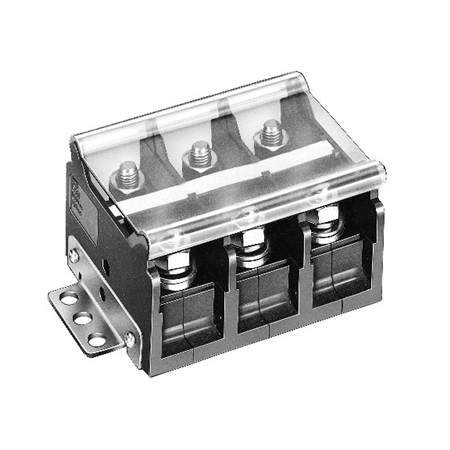

BN400BW3 - IDEC Terminal Block 3 Pole
Power Terminal Block 3 Pole

The BN Series Family
The BN series of terminal blocks are a traditional screw terminal block. With full size screws (nut and bolt termination on larger models) and current ratings up to 150A, there is a BN series terminal block for almost any application.

A UL94-V0 flammability rating ensures safety. Dust covers and fuse holders with optional blown fuse indication round out the offering. All models mount onto standard 35mm DIN rail.

The BNH series of terminal blocks feature a unique "touch-down" terminal that makes wiring ring-lugs easier than ever before. These terminals use full size screws in various sizes, held captive by unique cammed carrier armature. Modular construction allows for stacking of multiple size blocks, with only one endplate required per run. Optional jumper strips and dust covers simplify wiring and protect terminals.

Key Features
  • Modular construction
  • Optional dust covers and marking strips
  • UL94-V0 flammability rating
  • Mount on standard 35mm DIN rail
  • BN: Current capacities up to 150A
  • BNH: Current capacities up to 50A
  • BN: Fuse blocks for 1/4 x 1-1/4 fuses (optional blown fuse indication)
  • BNH: Unique Touch-Down terminals make wiring ring terminals especially convenient

pdfDownload the BN Series Terminal Blocks product brochure in *.pdf format
