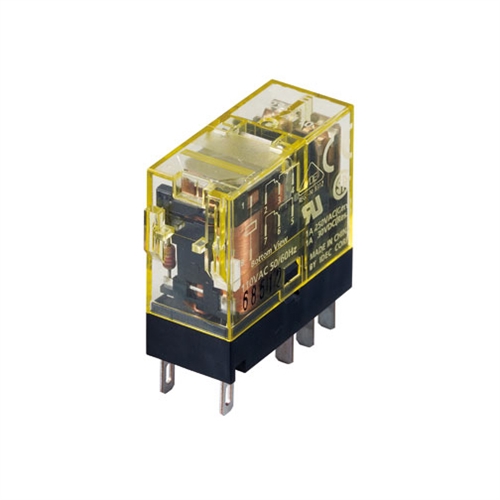

RJ22S-CL-D12 - IDEC Bifurcated Relay DC12 LED
RJ Bifurcated Series
The RJ22 model has a maximum contact rating of 1amp at 250V AC, while maintaining a minimum switching load of 100uA 1V DC, allowing customers to use this relay for their dry circuit switching needs. With the shortest width on the market RJ bifurcated relays are durable, compact and available with plug-in or PCB terminals.
Plug-In Terminal
A non-polarized green LED indicator is available (except on the simple type), utilizing IDEC’s unique light-guide structure to enable these relays to be identified by the illuminated green LED. Diode, reverse polarity diode, and RC circuits are also available with peak inverse voltages of 1000V.
- Non-polarized green LED indicator available
- Unique light-guide structure
- Diode, reverse polarity diode and RC circuits available
- 1000V Peak inverse voltage
- UL recognized, CSA certified, VDE approved, CE marked
PCB Terminal
Like the rest of the RJ family, RJ22 PCB bifurcated relays have been manufactured with attention to even the smallest details. Using our automated manufacturing technologies, an innovative design was utilized in the internal construction of moving parts ensuring the highest-quality, reliable relays. This includes a unique return spring structure eliminating unnecessary weak points, allowing for increased electrical conductivity and longer service life. Both DPDT and DPST-NO contact configuration types are available in a flux-tight structure.
- DPDT, DPST-NO contacts available.
- Unique spring return mechanism ensuring long life
- Flux-tight structure
RJ Plug-in and PCB Terminal relays (with bifurcated contacts) are UL recognized, CSA certified, VDE approved and CE marked.
2-Pole SJ Sockets
Correlating sockets include multiple features for ease-of-use. Sockets can be DIN rail, panel mounted or PCB mounted. The DIN rail/panel mount socket can be ordered with IEC finger-safe terminals, where coil and contact terminals are on opposite sides of the socket. The PCB mount socket allows you to replace a relay without having to de-solder.
Key Features
 Download the RJ Series Slim Power Relays catalog in *.pdf format
Download the RJ Series Relays datasheet in *.pdf format
Download the RJ/RQ Cross Reference Guide in *.pdf format
Download the Quick Selection Guide catalog in *.pdf format
Download the Relay & Socket Family sales brochure in *.pdf format
Download the Relay Spring Installation guide in *.pdf format
| Product Type |
Plug-In Relay |
| Input Voltage |
DC12V |
| Contact Rating |
1A |
| Contact Configuration |
DPDT |
| Options |
Indicator Light |
| Terminal Type |
Blade Plug-In |
|
|
|
 |
|
 |
|
