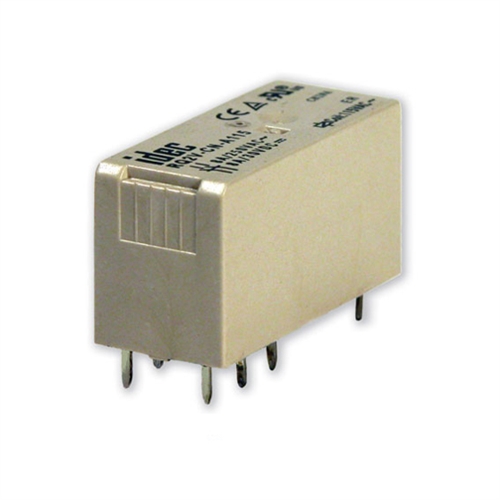

RQ2V-CN-A230 - IDEC RQ PCB Relay DPDT 8A AC240V Coil

RQ2V-CN-A230 - IDEC
RQ2V-CN-A230

Price: $9.23
Manufacturer SKU: RQ2V-CN-A230



Availability: Usually Ships in 3 to 5 Business Days
Part Number: RQ2V-CN-A230
Qty:

Description Technical Specs

RQ2V-CN-A230 - IDEC RQ PCB Relay DPDT 8A AC240V Coil

The RQ Series Family
IDEC's RQ relays are low-profile, PCB relays that provide quality within a compact package. RQ relays are small, yet maintain high contact ratings and long operational life. For larger power needs, a 16A model is also available.

Key Features
  • RQ PCB Relay ideal for compact high current applications
  • Compact size: 29 x 12.7 x 15 mm
  • Contact rating: 12A (SPDT) 8A (DPDT) 16A (SPDT High Capacity Version)
  • Long electrical and mechanical life
  • Electrical life: 100,000 cycles at full resistive load
  • Mechanical life: 10 million cycles at no load
  • Lead Free
  • Dust and solder flux protected
  • UL Recognized, c-UL recognized, CE, EN complaint, and TUV
pdfDownload the IDEC Relay Family sales brochure in *.pdf format
pdfDownload the RQ Series PCB Relays catalog in *.pdf format
