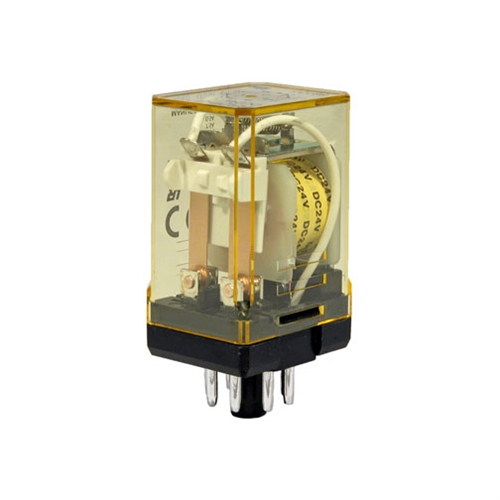

RR2P-LCD-DC24V - IDEC RR Relay 2 Pole Light Button Diode

RR2P-LCD-DC24V - IDEC
RR2P-LCD-DC24V

Price: $19.91
Manufacturer SKU: RR2P-LCD-DC24V



Availability: Usually Ships in 3 to 5 Business Days
Part Number: RR2P-LCD-DC24V
Qty:

Description

RR2P-LCD-DC24V - IDEC RR Relay 2 Pole Light Button Diode
RR Series
RR series relays provide reliable switching for industrial loads. Using pure silver contacts, they are rated up to 10A and 240V AC. Terminals are available in two styles, 8 or 11 pin tubular (octal) or .187" plug-in. Coil voltages range from 6VDC to 240VAC.

Carrying worldwide approvals including UL, CSA, TUV and CE marking (TUV and CE on tubular pin types only), they are ready to travel anywhere your application needs take them. Available options include manual check buttons, LED indicators, or side flange covers for direct surface mounting. When coupled with IDEC's high quality sockets, they form an unbeatable combination.

Key Features
  • High reliability and long service life
  • SPDT, DPDT, or 3PDT pure silver contacts
  • Available with octal (8-pin and 11-pin) or .187" blade plug-in terminals
  • Worldwide approvals on octal (8-pin and 11-pin) models: UL, CSA, TUV, CE
  • Options include check button for test operation and indicator light
  • Mounting options include flange mounting, DIN socket, or panel mount socket
