RY2KS-UCDC110V - IDEC DPDT Relay Latch with CB

RY2KS-UCDC110V - IDEC
RY2KS-UCDC110V

Price: $41.67
Manufacturer SKU: RY2KS-UCDC110V



Availability: Usually Ships in 3 to 5 Business Days
Part Number: RY2KS-UCDC110V
Qty:

Description Technical Specs

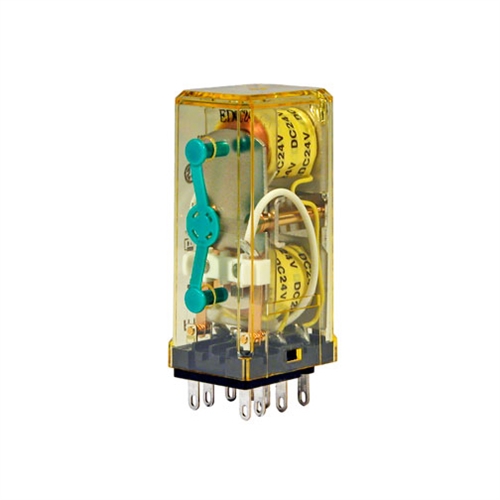

RY2KS-UCDC110V - IDEC DPDT Relay Latch with CB
Plug-In Latching Relay Dual Coil 3A Contact DPDT 110VDC Coil Momentary CheckbuttonRY2KS Series
A miniature latching relay with a 14-pin ice cube base and DPDT contact configuration. Pulse input operation maintains conditions even during power failures. DIN rail, PCB, and panel mount sockets are available for a wide range of mounting applications.

Key Features
  • Contacts rated 3A/240V AC, 3A/30V DC
  • Standard "ice cube" base, solder lug (14-pin) termination
  • High vibration and shock resistance
  • Excellent self-holding performance
  • Optional dual manual check button for circuit testing
  • Dual coil permanent magnet
  • 5A
pdfDownload the RY2KS Series Latch Relays in *.pdf format
pdfDownload the Quick Selection Guide catalog in *.pdf format
pdfDownload the Relay & Socket Family sales brochure in *.pdf format
