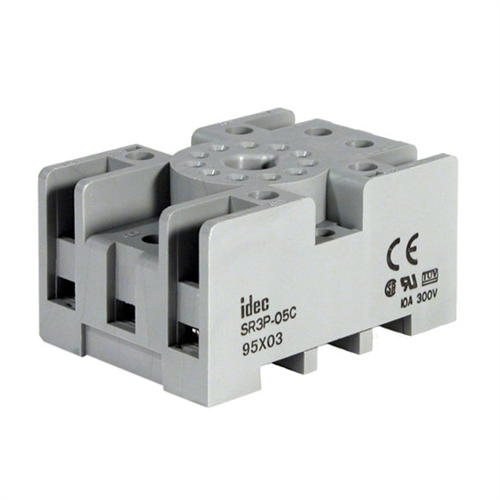

SR3P-05C - IDEC Socket 11 Pin Surface DIN Mount 10A 300V Max Finger Safe Screw Terminal

SR3P-05C - IDEC
SR3P-05C

Price: $7.80
Manufacturer SKU: SR3P-05C


Free Shipping
Availability: Normally Stocked
Part Number: SR3P-05C
Qty:

Description Technical Specs

SR3P-05C - IDEC Socket 11 Pin Surface DIN Mount 10A 300V Max Finger Safe Screw Terminal
Relay Socket DIN Mount Fingersafe Screw Terminal used with RR3P

RR Series
RR series relays provide reliable switching for industrial loads. Using pure silver contacts, they are rated up to 10A and 240V AC. Terminals are available in two styles, 8 or 11 pin tubular (octal) or .187" plug-in. Coil voltages range from 6VDC to 240VAC.

Carrying worldwide approvals including UL, CSA, TUV and CE marking (TUV and CE on tubular pin types only), they are ready to travel anywhere your application needs take them. Available options include manual check buttons, LED indicators, or side flange covers for direct surface mounting. When coupled with IDEC's high quality sockets, they form an unbeatable combination.

Key Features
  • High reliability and long service life
  • SPDT, DPDT, or 3PDT pure silver contacts
  • Available with octal (8-pin and 11-pin) or .187" blade plug-in terminals
  • Worldwide approvals on octal (8-pin and 11-pin) models: UL, CSA, TUV, CE
  • Options include check button for test operation and indicator light
  • Mounting options include flange mounting, DIN socket, or panel mount socket
