FT1A-H24RA - IDEC SmartAXIS 24I/O CPU DC power

FT1A-H24RA - IDEC
FT1A-H24RA

Price: $357.75
Manufacturer SKU: FT1A-H24RA



Availability: Normally Stocked
Part Number: FT1A-H24RA
Qty:

Description Technical Specs

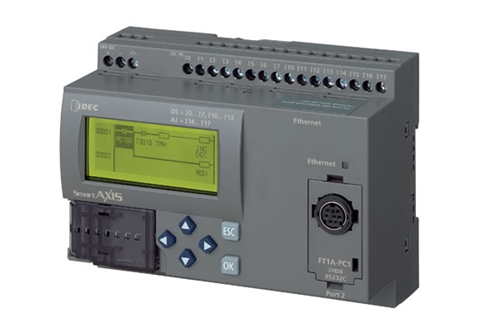

FT1A-H24RA - IDEC SmartAXIS 24I/O CPU DC power

SmartAXIS 24I/O CPU DC power, 16 DC inputs, 8 relay outputs, with LCD/keypad
  • Embedded Ethernet Port
  • Built-in 4pt Analog Inputs
  • Modbus TCP and RTU
  • 4 x 100 KHz HSC
  • Optional RS485/RS232C Port
  • 10A Relay Contacts
  • Embedded Smart LCD/Keypad
  • Embedded RTC
  • USB Mini-B programming port
  • Class 1 Div. 2 Hazardous Locations
The SmartAxis Family
IDEC FT1A SmartAXIS controllers were designed with a focus to provide users with unique features and advanced functions for applications that require limited I/O. FT1A SmartAXIS controllers are available 12, 24, 40, and 48 I/O CPUs .

The FT1A controllers are equipped with features that you can't find in any other competitors PLCs. 10A relay contacts, integrated analog inputs, embedded smart LCD/keypad, embedded Real-time clock, embedded RJ45 Ethernet port for remote connectivity and Modbus TCP communication, SD memory slot for data logging and many other features at a very competitive price.

pdfDownload the FT1A Series SmartAxis 24 I/O data sheet in *.pdf format
