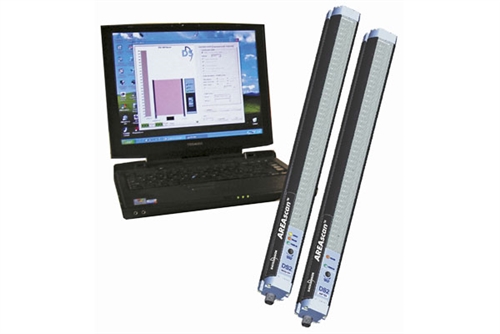

DS2-05-07-060-JV - IDEC DS2-05-07-060-JV, 957501000 Light grids sensor

DS2-05-07-060-JV - IDEC
DS2-05-07-060-JV

Price: $2,045.97
Manufacturer SKU: DS2-05-07-060-JV



Availability: Usually Ships in 3 to 5 Business Days
Part Number: DS2-05-07-060-JV
Qty:

Description Technical Specs

DS2-05-07-060-JV - IDEC DS2-05-07-060-JV, 957501000 Light grids sensor

The AREAscanTM family of the DS2 series covers controlled heights ranging from 15 to 250 cm, with 5 m operating distances for 6 mm resolution versions, or 10 m for 25 mm resolution versions. The measurement configuration can be set manually thanks to internal dip-switches, or using graphic interface from remote PC on the serial port. Once loaded the program on the flash memory, the device functions in the stand-alone mode. The serial interface transmits the measurement in a binary or ASCII code, the operating status control as well as the setting of the different baud-rate versions. The DS2 light arrays suits different height or dimensional measurement applications in general, in automatic material handling.
  • Measurement in automatic material handling
  • Versions with 6 or 25 mm resolution
  • 150 - 2500 mm controlled height
  • Operating distance up to 10 m
  • PNP, 0-10 V outputs and serial RS485
pdfClick to view the DS2 series Photoelectric Sensors data sheet in *.pdf format
