ISS-102A-LC - SymCom 2-Channel IntrInch Safe Switch 120V Latching Controller 1 Form A
ISS-102A-LC - SymCom
ISS-102A-LC

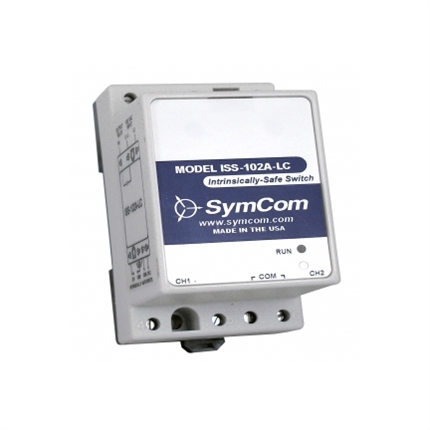

This is a family photo and may not be an accurate representation of the product.

Price: $243.94
Returnable: NOT RETURNABLE
Manufacturer SKU: ISS-102A-LC



Availability: Usually Ships in 3 to 5 Days
Part Number: ISS-102A-LC
Qty:

Description

ISS-102A-LC - SymCom 2-Channel IntrInch Safe Switch 120V Latching Controller 1 Form A

The ISS-102 Family
SymCom's Model ISS-102 two-channel, intrinsically-safe switch is designed for multiple uses including a pump-up/pump-down (latching) controller or two-channel switch. Two LEDs indicate the state of the intrinsically-safe inputs and output relays and user-selectable options are available including a variable resistance threshold for float inputs.The ISS-102 enclosure is surface or DIN rail mountable.

  • LC Each input channel is active when the corresponding switch is closed. When the lag input (CH2) is activated, the output closes. Applying latching logic, the output contact remains closed until the lead (CH1) and the lag (CH2) inputs are deactivated. Sensitivity is fixed at 100kOhms with a debounce time delay of 2 seconds.
  • DCS This dual-channel switch has a debounce delay feature of 0.5 seconds. Resistance probes or switches can be used on its inputs. Two LEDs illuminate the output state of either form A relay. Sensitivity is fixed at 100kOhms with a debounce time delay of 0.5 seconds.
  • MC By selecting the proper functionality through the dip switches, you can define a pump-up or pump-down, single or dual channel non-latching switch. The sensitivity adjustment (4.7k-100kOhms) allows you to define the input impedance at which the output relays (one form A & one form C) will change state, with a debounce time delay of 0.5 or 2 seconds.

Features:

  • Compact design
  • Finger-safe terminals
  • DIN rail or surface mountable
  • LED state indicator
  • 2 input channels
pdfDownload the The SymCom Product Line catalog in *.pdf format
pdfDownload the SymCom Overview brochure in *.pdf format
pdfDownload the Intrinsically Safe Relays/Controllers datasheet in *.pdf format
