ISS-105-ISO - SymCom 5-Ch Intrinsically Safe Only Switch 120V
ISS-105-ISO - SymCom
ISS-105-ISO

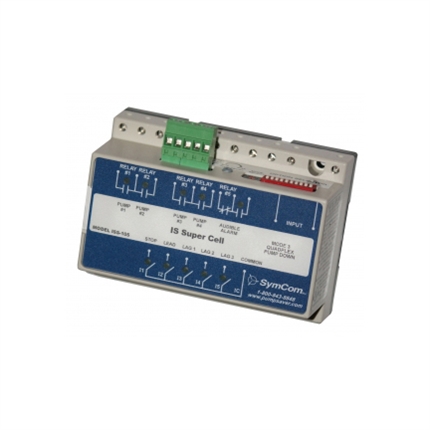

This is a family photo and may not be an accurate representation of the product.

Price: $393.48
Manufacturer SKU: ISS-105-ISO



Availability: Usually Ships in 3 to 5 Days
Part Number: ISS-105-ISO
Qty:

Description

ISS-105-ISO - SymCom 5-Ch Intrinsically Safe Only Switch 120V

The ISS-105 IS Super Cell Family
A "smart" five-channel intrinsically safe relay and pump controller. The IS Super Cell can be configured for a wide variety of applications including alternating or non-alternating duplex, duplex separate pump stop (SPS), triplex and quadplex applications. It can be set up for pump-up or pump-down applications or can be used as a five-channel relay.

The IS Super Cell has a long list of features that are needed for multiple pump applications. The IS Super Cell can indicate low, high and out-of-sequence alarms. If an out-of-sequence alarm occurs, the skipped pump(s) will be started as intended. The Model ISS-105 can be set up to do non-alternating control, alternating control and alternating control with one non-alternating pump. The non-alternating pump is intended for use with an emergency or jockey pump. The IS Super Cell can start an emergency pump once every 50 cycles to keep it working freely Using the built-in DIP switches, individual pumps can be disabled when taken out of service for repair or maintenance.

Features:

  • 5 intrinsically-safe input channels meeting UL913 Sixth Edition
  • 4 normally open output relays and 1 SPDT output relay
  • Field selectable pump control options
  • Duplex pump control
  • Duplex SPS (separate pump stop) pump control
  • Triplex pump control
  • Quadplex pump control
  • Out-of-sequence alarm
  • High and/or low alarm options depending on the number of pumps and settings
  • Audible alarm output
  • Meets IEC EMC standards for Electrical Fast Transients (EFT), Electrostatic Discharge
  • (ESD) and Radio Frequency Immunity (RFI)
  • DIN rail or surface mountable
  • User-selectable alternator/non-alternator option
  • Non-alternating pump option for emergency or jockey applications
  • Pump disable switches
  • Adjustable lag pump delay for all pumping modes
  • Adjustable delay-on-make/break timer in five-channel relay mode
  • Finger-safe terminals
