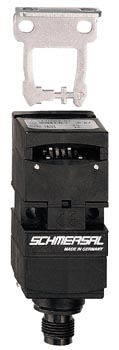

AZ17-11Zi-ST-B6R - Schmersal AZ17 ZI keyed interlock (with individually coded actuator key) ( 101144089 )

AZ17-11Zi-ST-B6R  - Schmersal
AZ17-11Zi-ST-B6R

Price: $149.00
Manufacturer SKU: AZ17-11Zi-ST-B6R
Manufacturer ID: 101144089


Availability: Stock - 4 weeks
Part Number: AZ17-11ZI-ST-B6R
Qty:

Description

This product comes with its own individually keyed flexible, close-radius key (1.97" minimum closing radius).

Safety switch with actuator; 1 Normally open contact (NO) / 1 Opener (NC); Latching force 5 N; Connector M12; Actuator B6R

The compact Series AZ17zi are designed for use with movable machine guards which must be closed for operator safety. Their tamper-resistant design, and positive-opening NC contacts, provide a significantly higher level of safety than conventional spring-driven switches whose contacts can weld/stick shut. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.

  • right-hand model
  • For very smal actuating radii in line with or at 90- to the plane of the actuator
  • Thermoplastic enclosure
  • Double-insulated
  • Long life
  • 30 mm x 60 mm x 30 mm
  • Small body
  • Individual coding
  • High level of contact reliability with low voltages and currents
  • Not sensitive to dirty conditions by virtue of patented roller system
  • 8 actuating planes
  • Slot sealing plug included
  • cable gland M16
