INFORMER-MS - SymCom Remote Diagnostic Tool for Model 455

Home > Manufacturers > P - S > SYMCOM > SYMCOM Electronic Controls & Protection > Auxiliary Products >

INFORMER-MS

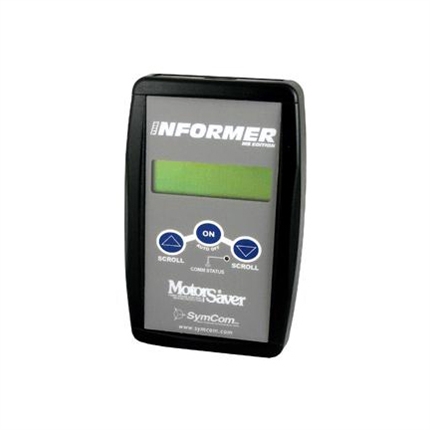

This is a family photo and may not be an accurate representation of the product.

Price: $187.35

Returnable: NOT RETURNABLE
Manufacturer SKU: Informer-MS

Availability: Usually Ships in 3 to 5 Days
Part Number: INFORMER-MS

Qty:

Description

INFORMER-MS - SymCom Remote Diagnostic Tool for Model 455

The Informer-MS
A handheld diagnostic tool designed for use with MotorSaver® Model 455* equipped with an infrared LED transmitter.
The Informer-MS uses an infrared receiver to read valuable information transmitted from the Model 455*, which can be helpful for troubleshooting the system. A green communication status light indicates the Informer-MS is receiving data from the MotorSaver®. If communication is lost, the Informer-MS will display the last values it received.

*Model 455s manufactured after 03/01/06 are equipped with the infrared LED transmitter. Models manufactured prior to this date are not compatible with the Informer-MS.

An infrared adapter can be purchased to allow communication with the Model 455 without opening the panel door.

Features:

The Informer-MS displays:
Real-time, line and load side voltage Real-time, line and load side voltage unbalance
Motor run hours
Last 20 faults
Last 32 motor starts
High and low voltage trip points
Voltage unbalance trip point
Restart and trip delay settings
Voltage at last fault

Auxiliary Products:

Model 455 Series P/N: 455, P/N: 455-480R, P/N: 455-575
IR Kit-36 (36" infrared adapter cable)

Download the The SymCom Product Line catalog in *.pdf format
pdf

Download the SymCom Overview brochure in *.pdf format
pdf

Download the Auxiliary Products datasheet in *.pdf format
