JSmart715 - Exor 15.6" TFT color display, resolution 1366x768 pixel

JSmart715 - Exor
JSmart715

Price: $3,395.00
Manufacturer SKU: JSmart715



Availability: Usually Ships in 1 to 2 Weeks
Part Number: JSMART715
Qty:

Description Documents & Downloads

JSmart715 - Exor - 15.6" TFT color display, resolution 1366x768 pixel, 16M colors, dimmable backlight PCAP Touchscreen Multitouch, ARM Cortex-A9 quad core CPU

Overview:

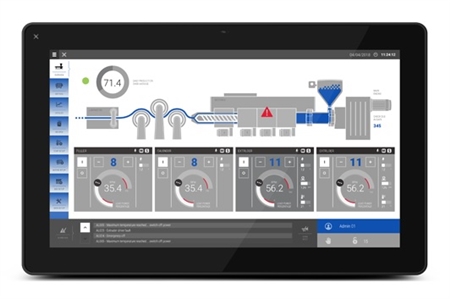

JSmart715 is the ideal product for field installation in critical areas. High-resolution 15.6” display with multitouch PCAP touchscreen with a robust glass front; touchscreen/display bonding for fidget optical performance.

Power-over-Ethernet (PoE) for maximum simplicity of connection using standard CAT5 wiring. The availability of a Wi-Fi interface enhances the device integration.

Full IP protection with the use of dedicated connectors for the maximum flexibility of installation, from mounting arm to a simple M22 hole. The product includes a full set of environment and motion sensors to make this device a true IIoT edge device for Industry 4.0 applications.

The JSmart product family has been optimized for use as an embedded browser or as a JMobile HMI device.

  • Performing HTML5-compatible browser with graphic accelerator
  • JMobile runtime with OPC UA Server and Client
  • Optional CODESYS V3 PLC for integrated HMI and control applications
  • Open platform for Linux applications
  • Built-in sensors (temperature and acceleration)
