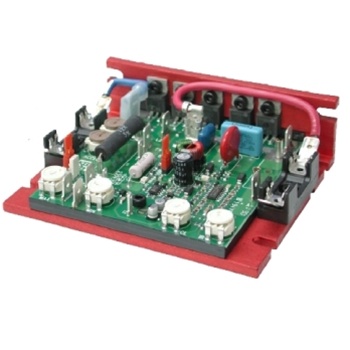

KBMM-125 KB Electronics 115 VAC, thru 0.75 HP, 90 VDC ARM (9449)

KBMM-125 KB Electronics 115 VAC, thru 0.75 HP, 90 VDC ARM (9449)
KBMM-125

Price: $121.10
Manufacturer SKU: KBMM-125
Manufacturer ID: 9449

Quantity in Stock:130


Availability: Normally Stocked
Part Number: KBMM-125
Qty:

Description

KBMM-125 KB Electronics 115 VAC, thru 0.75 HP, 90 VDC ARM (9449)

Plug-in Horsepower Resistor Required The control must have a Plug-in Horsepower Resistor installed; purchased separately
Plug-in Line Fuse Available Provision for mounting the fuse is provided, but the fuse is not included with the control. Plug-in Line Fuses purchased separately
Plug-in Armature Fuse Available Provisions for mounting the fuse is provided, but fuse is not included with the control. Plug-in Armature Fuses purchased separately


pdf Consult the Plug-in Horsepower Resistor and Plug-in Fuse Selection Charts for proper sizing based on motor horsepower and amperage.
KBMM125
Additional Product Information

The KB Electronics KBMM full-wave DC motor control is the ultimate in reliability and performance. Contains Direct-Fed current limit that helps protect the SCR power bridge against direct shorts and prevents demagnetization of PM motors. 25A SCR's and AC line and armature fusing further enhance reliability. KB's exclusive Plug-in Horsepower Resistor eliminates the need for recalibration when used over a wide range of motor horsepower. Standard features include trimpots for MIN, MAX, IR, CL and Linear ACCEL and DECEL, armature or tach feedback. Auto Inhibit, MOV transient protection, 5k ohm potentiometer and Noise Rejection Circuitry. Options: Auxiliary Heat sink, Barrier Terminal Options, Finger Safe Cover, and SI-6 Signal Isolator.
