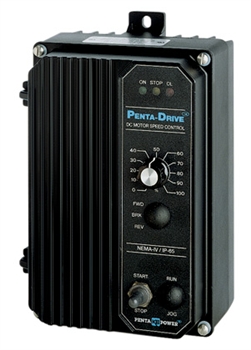

KBPC-240D Black KB Electronics 115/230 VAC, thru 1.0/2.0 HP, 90/180 VDC ARM (9338)

KBPC-240D Black KB Electronics 115/230 VAC, thru 1.0/2.0 HP
KBPC-240D Black

Price: $211.40
Manufacturer SKU: KBPC-240D Black
Manufacturer ID: 9338



Availability: Normally Stocked
Part Number: KBPC-240D-BLACK
Qty:

Description

KBPC-240D Black KB Electronics 115/230 VAC, thru 1.0/2.0 HP, 90/180 VDC ARM (9338)

Plug-in Horsepower Resistor Not Required This control uses a jumper for current selection
Plug-in Line Fuse External No provisions for mounting the fuse on the control, but it is recommended that the customer provide an external means of fusing the control. Plug-in Line Fuses purchased separately
Plug-in Armature Fuse Included Fuse is included with the control


pdf Consult the Plug-in Horsepower Resistor and Plug-in Fuse Selection Charts for proper sizing based on motor horsepower and amperage.
KBPC240DBlack
Additional Product Information

The KB Electronics KBPC Series NEMA-4X (IP-65) SCR DC Motor Speed and Torque Control is designed for applications requiring washdown and watertight integrity. Its housing is ruggedly constructed of die cast aluminum which is protected with an acrylic coating. Exclusive Short Circuit and Timed Current Limit (TCL) circuitry prevents motor burnout and demagnetization of PM motors. Features such as Selectable Current Range eliminate unnecessary calibration of IR and current limit trimpots. Other selectable features are: Input voltage (115, 208/230 Volts AC), Output Voltage (90, 180 Volts DC), Current Range (2.5, 5, 7.5, 10) amps, Input Signal (0-5, 0-20) Volts DC, Armature or tach feedback, Tach voltages (7, 20, 30, 50 Volts/1000 RPM). Trimpot Adjustments include: MIN, MAX, ACCEL, DECEL, IR, CL and TCL. Standard features include: Armature Fusing, Electronic Start-Stop and diagnostic LED Indicator Array for "Power On", "Stop" and "Overload". The KBPC-225 contains all of the features of the KBPC-240D except Armature Fusing. In addition, it is designed specifically for 3HP - 180 VDC PM or shunt motors operating from a 230VAC line. Accessories include: KBSI-240D Signal Isolator, Electronic Fwd-Brk-Rev containing APRM-PC, hesitation type Fwd-Brk-Rev switch kit and switches for AC Line ON/OFF, Run-Stop-Jog and Auto/Manual. Dimensions (L x W x H approx.): 5.9" x 10.0" x 5.0".
