KRDB112.5S - SSAC Timer Delay-on-Break 12VDC Relay FXD 2.5s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > KRDB Series >

KRDB112.5S

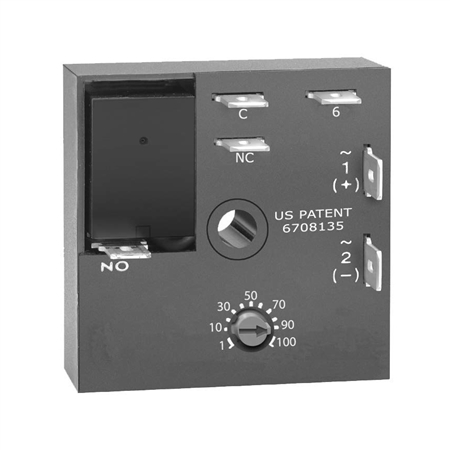

This is a family photo and may not be an accurate representation of the product.

Price: $64.23

Returnable: NOT RETURNABLE
Manufacturer SKU: KRDB112.5S
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KRDB112.5S

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KRDB112.5S - SSAC Timer Delay-on-Break 12VDC Relay FXD 2.5s 2x2

The KRDB Series Family

The KRDB Series is a compact time delay relay measuring only 2 in. (50.8 mm) square. Its microcontroller timing circuit provides excellent repeat accuracy and stability. Encapsulation protects against shock, vibration, and humidity. The KRDB Series is a cost effective approach for OEM applications that require small size, isolation, reliability, and long life.

Operation (Delay-on-Break):
Input voltage must be applied before and during timing. Upon closure of the initiate switch, the output relay energizes. The time delay begins when the initiate switch is opened. The output remains energized during timing. At the end of the time delay, the output de-energizes. The output will energize if the initiate switch is closed when input voltage is applied.
Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output.

Features:

Compact time delay relay

Microcontroller circuitry

±0.5% repeat accuracy

Isolated, 10A, SPDT output contacts

Factory fixed, onboard or external adjust

Delays from 0.1s - 1000m in 6 ranges

Input voltages from 12 to 230V in 6 options

±5% factory calibration

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

Mounting bracket: P/N: P1023-6

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The KRDB Series Datasheet datasheet in *.pdf format
