KRDM4145S

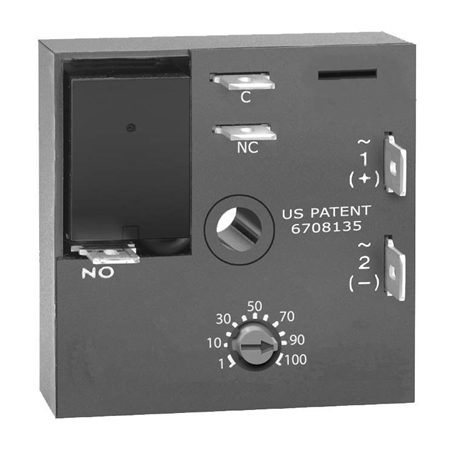

This is a family photo and may not be an accurate representation of the product.

Price: $56.18

Returnable: NOT RETURNABLE
Manufacturer SKU: KRDM4145S
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KRDM4145S

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KRDM4145S - SSAC Timer Delay-on-Make 120VAC Relay FXD 45s 2x2

The KRDM Series Family

The KRDM Series is a compact time delay relay measuring only 2 in. (50.8 mm) square. Its solid-state timing circuit provides excellent repeat accuracy and stability. Encapsulation protects against shock, vibration, and humidity. The KRDM Series is a cost effective approach for OEM applications that require small size, isolation, reliability, and long life.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output relay energizes and remains energized until input voltage is removed.
Reset: Removing input voltage resets the time delay and output.

Features:

Compact time delay relay

10A, SPDT output contacts

Factory fixed, onboard or external adjust

Delays from 0.1s - 100m in 5 ranges

±0.5% repeat accuracy

±5% factory calibration

Input voltages from 12 to 230V in 6 options

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Female quick connect:

P/N: P1015-13 (AWG 10/12)

P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Mounting bracket: P/N: P1023-6

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Versa-knob: P/N: P0700-7
