KRDR420A3 - SSAC Timer Recycling 120VAC Relay Adjustable 0.1 10s On 0.1 10m Off On First
KRDR420A3 - SSAC
KRDR420A3

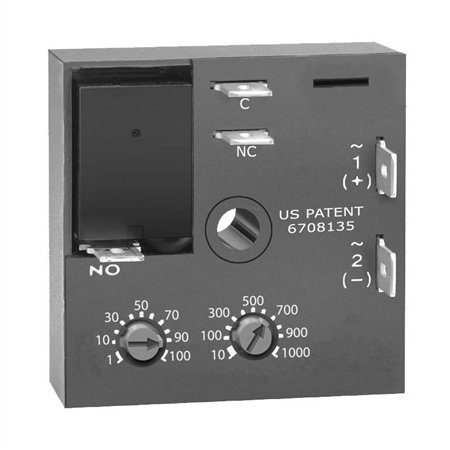

This is a family photo and may not be an accurate representation of the product.

Price: $72.85
Returnable: NOT RETURNABLE
Manufacturer SKU: KRDR420A3
(Minimum order):  10


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: KRDR420A3
Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KRDR420A3 - SSAC Timer Recycling 120VAC Relay Adjustable 0.1 10s On 0.1 10m Off On First

The KRDR Series Family

The KRDR Series is a compact time-delay relay measuring only 2 in. (50.8 mm) square. Its solid-state timing circuit provides excellent repeat accuracy and stability. Encapsulation protects against shock, vibration, and humidity. The KRDR Series is a cost effective recycling timer for OEM applications that require small size, isolation, reliability, and long life.

Operation (Recycling - ON Time First):
Upon application of input voltage, the output relay energizes and the T2 ON time begins. At the end of the ON time, the output de-energizes and the T1 OFF time begins. At the end of the OFF time, the output relay energizes and the cycle repeats as long as input voltage is applied Reset: Removing input voltage resets the output and the time delays, and returns the sequence to the ON time.

Operation (Recycling - OFF Time First):
Upon application of input voltage, the T1 OFF time begins. At the end of the OFF time, the T2 ON time begins and the load energizes. At the end of the ON time the load de-energizes, and the cycle repeats until input voltage is removed.
Reset: Removing input voltage resets the output and the sequence to the OFF time.

Features:

  • Compact time delay relay
  • 10A, SPDT output contacts
  • Factory fixed or onboard adjust
  • Delays from 0.1s - 1000m in 5 ranges
  • ±0.5% repeat accuracy
  • ±5% factory calibration

Auxiliary Products:

  • Female quick connect:
    • P/N: P1015-13 (AWG 10/12)
    • P/N: P1015-64 (AWG 14/16)
  • Quick connect to screw adaptor: P/N: P1015-18
  • Mounting bracket: P/N: P1023-6
  • DIN rail: P/N: C103PM (Al)
  • DIN rail adaptor: P/N: P1023-20
pdfDownload the The SSAC Product Line catalog in *.pdf format
pdfDownload the The KRDR Series Datasheet datasheet in *.pdf format
