KSD14130S - SSAC Timer Delay-on-Make 120VAC 1A FXD 30s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > KSD1 Series >

KSD14130S

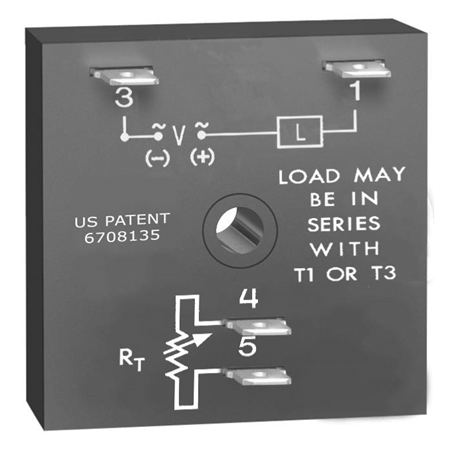

This is a family photo and may not be an accurate representation of the product.

Price: $42.29

Returnable: NOT RETURNABLE
Manufacturer SKU: KSD14130S
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KSD14130S

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KSD14130S - SSAC Timer Delay-on-Make 120VAC 1A FXD 30s 2x2

The KSD1 Series Family

The KSD1 Series features two-terminal, series-connection with the load. The KSD1 Series is an ideal choice for delay-on-make timing applications. This series is designed for general purpose commercial and industrial applications where a small, cost effective, reliable solid-state timer is required. The factory calibration for fixed time delays is within 5% of the target time delay. The repeat accuracy, under stable conditions, is 0.5% of the selected time delay. This series is designed for popular AC and DC voltages. Time delays of 0.1 seconds to 1000 minutes are available in 6 ranges. The output is rated 1A steady and 10A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry.

Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

Fixed or adjustable delays from 0.1s - 1000m in 6 ranges

0.5% repeat accuracy

±5% factory calibration

12 to 230V in 5 options

1A, solid-state output

Encapsulated

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Mounting bracket: P/N: P1023-6

Female quick connect:

P/N: P1015-64 (AWG 14/16)

P/N: P1015-14 (AWG 18/22)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
