KSD2413M

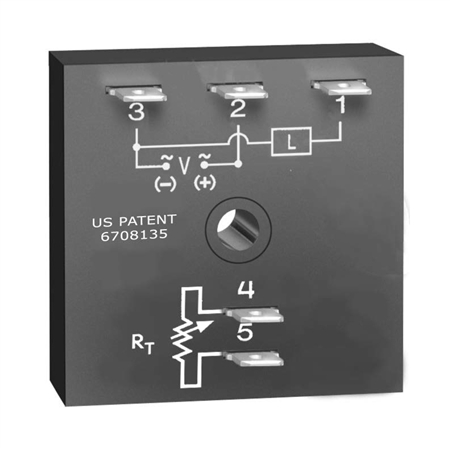

This is a family photo and may not be an accurate representation of the product.

Price: $41.88

Returnable: NOT RETURNABLE
Manufacturer SKU: KSD2413M
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KSD2413M

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KSD2413M - SSAC Timer Interval 120VAC 1A FXD 3m 2x2

The KSD2 Series Family

The KSD2 Series is designed for general purpose commercial and industrial applications where a small, cost effective, reliable, solid-state timer is required. The factory calibration for fixed time delays is within 5% of the target time delay. The repeat accuracy, under stable conditions, is 0.5% of the selected time delay. This series is designed for input voltages of 24, 120 or 230VAC. Time delays of 0.1 seconds to 1000 minutes are available in 6 ranges. The output is rated 1A steady and 10A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry. An excellent choice for most OEM pulse shaping, maximum run time, and other process control applications.

Operation (Interval):
Upon application of input voltage, the time delay begins. The output energizes during the time delay. At the end of the time delay, the output de-energizes and remains de-energized until input voltage is removed.
Reset: Removing input voltage resets the time delay and the output.

Features:

Fixed or adjustable delays from 0.1s - 1000m

±0.5% repeat accuracy

± 5% factory calibration

24, 120, or 230VAC

1A, solid-state output

Encapsulated

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Mounting bracket: P/N: P1023-6

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
